Recessed LED ceiling light
Power: 3/5/7/9/12/15/18W
Input Voltage: AC85-265V
Protection Class: IP65
Warranty: 3-5 years
Certification: CCC,CE,RoHS, etc.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

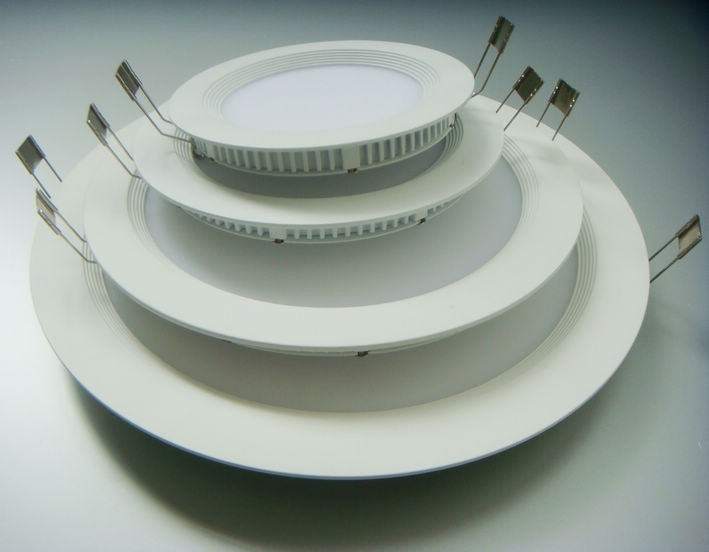

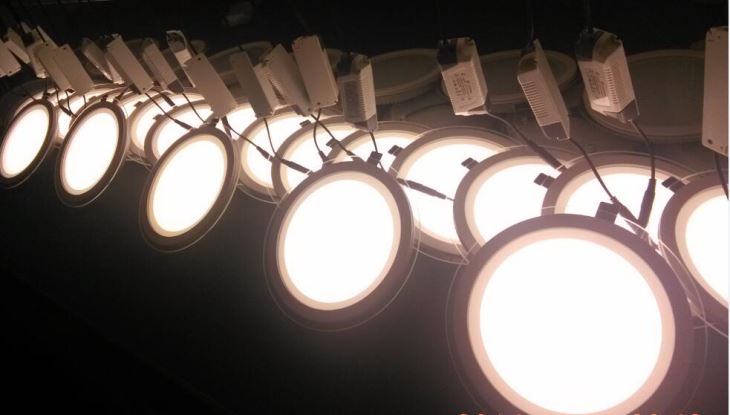

Recessed LED ceiling light
Round LED Panel light 3W-24W
LED light panels are designed for residential and commercial ceilings lighting.
1. Energy saved up to 80%, compared to fluoresent ones.
2. Wide range of input voltage AC85-265V
3. Instant start, no flickering, no humming.
4. New high efficiency constant current driver and super bright SMS2835 led chip.
5.Special circuit design, each group of LEDs work separately, avoiding the problem that caused by single led break
6. Aluminum lamp boday and imported guide plate makes light with high-end qualiy.
7.Green environmental, lead-free material, ROHS approval, No electrical wave, conforming to CE,No RF interference
|
Product model |
LED Qty(Epistar) |
Luminous Flux |
Dimension |
Cutout size |
Color Temp. |
Package |
|
YHZ-PL3W |
15pcs SMD2835 |
270lm |
D102mm |
80*H53.5mm |
3000-6500K |
11kgs(60pcs/ctn) |
|
YHZ-PL5W |
25pcs SMD2835 |
450lm |
D102mm |
80*H53.5mm |
3000-6500K |
11kgs(60pcs/ctn) |
|
YHZ-PL7W |
35pcs SMD2835 |
630lm |
D112mm |
90*H58.8mm |
3000-6500K |
11kgs(60pcs/ctn) |
|
YHZ-PL9W |
45pcs SMD2835 |
810lm |
D112mm |
90*H58.8mm |
3000-6500K |
11kgs(60pcs/ctn) |
|
YHZ-PL12W |
60pcs SMD2835 |
1080lm |
D146mm |
120*H60.7mm |
3000-6500K |
11kgs(60pcs/ctn) |
|
YHZ-PL15W |
75pcs SMD2835 |
1350lm |
D190mm |
165*H64.4mm |
3000-6500K |
11kgs(60pcs/ctn) |
|
YHZ-PL18W |
120pcs SMD2835 |
1620lm |
D190mm |
165*H64.4mm |
3000-6500K |
11kgs(60pcs/ctn) |
LED indoor lighting, led panel light,LED panel lamp LED ceiling LED recessed ceiling light
