Solar-Powered LED Floodlight With Smart WiFi Camera
YH-FL-MJB
1.Power: 60-1500W
2.CCT: 7000-7500K
3.Luminous Flux: 620-5401 lm
4.Solar Panel: 670*580*23mm / Mono5V/80W
5.Housing Material: AL6063
6.Shipping time: 3-7 days
7.Warranty: 3 years
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Introduction
The YH-FL-MJB seriessolar floodlightis our patented, high-performance solar lighting solution, designed for maximum efficiency and reliability. This product holds CE, RoHS, FCC, CB, and other international certifications, ensuring top-tier quality and safety.
With wireless installation, optional WiFi camera, high charging efficiency, extended battery life, and outstanding light output, it stands out in the market.
Equipped with a brand-new A-grade large-capacity LiFePO4 battery, this floodlight efficiently converts and stores solar energy to deliver long-lasting illumination.
Applications
The YH-FL-MJB Solar Floodlight is ideal for various outdoor spaces, including:
- Yards & Gardens & Garage
- Parks & Roads
- Parking Lots & Stadiums
- Courts & Other Public Areas
Key Features & Advantages

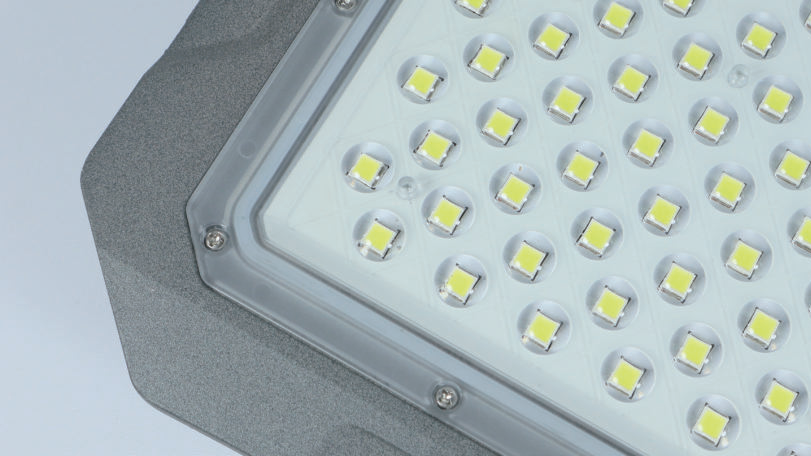

1. High Lumen Output – 30% Brighter
- Advanced LED optical lens enhances brightness and reduces light loss.
- Uses PC (Teijin Brand, Japan) lens with 91% light transmittance, significantly higher than standard glass (80%).
- Equipped with SMD5054 LED chips, delivering an impressive 160lm/W efficiency.
- Durability: Withstands -40°C to 125°C, ensuring long-term performance without yellowing or brittleness for over five years.
2. Wider Beam Angle – 110° PC lens for even illumination
- Features a 110-degree PC lens, compared to conventional 90-degree lenses.
- Provides even, uniform lighting with no yellow borders.
3. Long-Lasting Battery: A-grade LiFePO4, 2000+ cycles, 10-year lifespan.
- Uses A-grade LiFePO4 32140 battery, lasting 2000+ charge cycles while retaining 80% capacity.
- Outperforms 32650 LiFePO4 batteries, providing faster charging, lower heat generation, and improved efficiency.
- Estimated to power the lamp for 10+ years.
4. Elegant Cable-Free Design with XT60 Plug
- No external wiring, ensuring a sleek, modern look.
- XT60 plug for easy, waterproof, and secure connection.
- 30% larger cable, reducing power loss by 90% and enabling faster charging.
5. High-Efficiency MPPT Charging – 20% Faster
- Our solar controller utilizes an MPPT charging scheme, enhancing charging and discharging efficiency.
- Uses 5V/30W solar panels with a peak charging current of 6A, compared to standard 6V/30W panels (5A peak).
- Charging efficiency increased by 20%, ensuring superior energy conversion.
6. Multiple Lighting Modes
- Radar Mode: Motion detection for all-night efficiency.
- Constant Lighting Mode: Provides steady illumination throughout the night.
- Hybrid Mode: Constant lighting switches to radar mode as needed.
Optional WiFi Camera for Enhanced Security
- Ultra-Low Power Consumption – 60% more efficient, ensuring up to three days of continuous operation during rainy or cloudy weather.
- HD Camera with Night Vision – Captures clear, full-color footage even in low-light conditions.
- Stable & Reliable Connectivity – Auto-reconnect feature ensures uninterrupted operation after network disruptions.
- User-Friendly Monitoring Platform – Supports multi-language settings and works seamlessly with both apps and PCs for easy multi-device access.
- Advanced IoT Features – Includes multi-user viewing, motion detection alerts, photo capture, recording, playback, and timer settings.
- Super-Fast WiFi Setup – Self-developed WiFi module enables hassle-free installation in under 30 seconds.
Lighting Mode
|
Power Reduction in Different Modes |
Brightness Against Time |
||||
|
0-0.5H |
0.5-2H |
2-4H |
4-5H |
5H to morning |
|
|
Auto mode |
100-80% |
80-60% |
60-50% |
50-40% |
40-30% |
|
Sensor Mode |
Working by radar sensor, 10% brightness standby, during detection 100% brightness, last for 10s |
||||
Technical Specifications
Primary Version
|
Model |
YH-FL-MJB60 |
YH-FL-MJB100 |
YH-FL-MJB200 |
YH-FL-MJB300 |
YH-FL-MJB500 |
YH-FL-MJB800 |
YH-FL-MJB1200 |
YH-FL-MJB1500 |
|
Housing Material |
AL6063 |
AL6063 |
AL6063 |
AL6063 |
AL6063 |
AL6063 |
AL6063 |
AL6063 |
|
Lens Material |
Teijin PC |
Teijin PC |
Teijin PC |
Teijin PC |
Teijin PC |
Teijin PC |
Teijin PC |
Teijin PC |
|
Lamp Size (mm) |
235*200*50 |
235*200*50 |
271*220*50 |
311*264*55 |
360*306*55 |
405*345*58 |
405*345*58 |
405*345*58 |
|
LED QTY (PCS) |
42 pcs SMD5054 |
42 pcs SMD5054 |
63 pcs SMD5054 |
91pcs SMD5054 |
130 pcs SMD5054 |
165 pcs SMD5054 |
165 pcs SMD5054 |
165 pcs SMD5054 |
|
Battery Capacity |
6Ah |
15Ah |
18Ah |
30Ah |
36Ah |
45Ah |
60Ah |
100AH |
|
Solar Panel |
Mono5V/12W |
Mono5V/18W |
Mono5V/30W |
Mono5V/40W |
Mono5V/45W |
Mono5V/50W |
Mono5V/60W |
Mono5V/80W |
|
350*235*17mm |
400*235*20mm |
430*350*20mm |
480*400*20mm |
530*400*20mm |
590*400*20mm |
670*445*23mm |
670*580*23mm |
|
|
CCT |
7000-7500K |
7000-7500K |
7000-7500K |
7000-7500K |
7000-7500K |
7000-7500K |
7000-7500K |
7000-7500K |
|
Motion Sensor |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Discharge Time |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
|
Discharge Current |
1.2A |
2.2A |
2.8A |
4.5A |
5.5A |
6.5A |
7.5A |
11A |
|
Luminous Flux |
620lm |
1097lm |
1343lm |
2178lm |
2641lm |
3263lm |
3795lm |
5401lm |
|
IP Rank |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
Premium Version (With WiFi Camera)
|
Model |
YH-FL-MJB100C |
MJ-BW200C |
MJ-BW300C |
MJ-BW500C |
MJ-BW800C |
MJ-BW1200C |
|
Housing Material |
AL6063 |
AL6063 |
AL6063 |
AL6063 |
AL6063 |
AL6063 |
|
Lens Material |
Teijin PC |
Teijin PC |
Teijin PC |
Teijin PC |
Teijin PC |
Teijin PC |
|
Lamp Size (mm) |
235*200*50 |
271*220*50 |
311*264*55 |
360*306*55 |
405*345*58 |
405*345*58 |
|
LED QTY (PCS) |
42 pcs SMD5054 |
63 pcs SMD5054 |
91 pcs SMD5054 |
130 pcs SMD5054 |
165 pcs SMD5054 |
165 pcs SMD5054 |
|
Battery Capacity |
18Ah |
30Ah |
36Ah |
45Ah |
54Ah |
72Ah |
|
Solar Panel |
Mono5V/18W |
Mono5V/30W |
Mono5V/40W |
Mono5V/45W |
Mono5V/50W |
Mono5V/60W |
|
400*235*20mm |
430*350*20mm |
480*400*20mm |
530*400*20mm |
590*400*20mm |
670*445*20mm |
|
|
CCT |
7000-7500K |
7000-7500K |
7000-7500K |
7000-7500K |
7000-7500K |
7000-7500K |
|
Motion Sensor |
YES |
YES |
YES |
YES |
YES |
YES |
|
Discharge Time |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
2-3 rainy days |
|
Discharge Current |
1.8A |
2.5A |
4A |
5A |
6A |
7A |
|
Luminous Flux |
958lm |
1267lm |
2017lm |
2535lm |
3038lm |
3510lm |
|
IP Rank |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Camera Resolution |
1440P day and night full color,4M pixels |
|||||
|
Camera Lens |
Focallength:4MM;fixed lens |
|||||
|
Version |
WiFi |
|||||
|
Decoding |
H.265 |
|||||
|
TF card |
32G to 256G for optional |
|||||
|
Platform |
APP or PC |
|||||
|
CCTV Working Mode |
24 hours working or Induction |
|||||
