12 meter High Mast Pole

Material: Mild steel
Height: 12-30 meters
Usage: Outdoor
Shape: Octagonal
Surface Treatment: Hot Dip Galvanized
Standard: ISO 9001
Protection Class: IP65
Color Temperature: -40℃-+50℃
Warranty: 20-25 years

Send Inquiry Chat Now

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Products Description

A high mast pole is a tall pole with a lighting fixture attached to it, designed to illuminate large areas such as airports, sports stadiums, and industrial sites. The 12 meter high mast pole is a popular option for outdoor lighting due to its height and ability to provide even lighting coverage over a large area. This high mast pole is typically made from high-quality steel, which offers excellent durability and longevity. It features a strong base to ensure stability and can come equipped with several lighting fixtures, each with its own adjustable angle to optimize illumination in the targeted area. Additionally, the high mast pole can be customized with various finishes to adapt it to the surrounding environment.

12-30 Meters High Mast Pole

Application: Airport, seaport, plaza, stadium, square, highway, street way, etc.

Versatile use

Easy installation

Energy efficient

Excellent customer service

Customizability

Our high mast pole can be customized with various finishes and lighting fixtures, allowing it to adapt to different applications and environments. Customers can choose from a range of lighting options, such as LED lights, Metal Halide lamps, Sodium Vapor lights, and more. Additionally, customers can select different finishes for the pole, such as hot-dip galvanization, painting, or powder coating, based on their specific needs.

Durability

The 12 meter high mast pole is made from high-quality steel material, which makes it durable and long-lasting. It can withstand harsh weather conditions and resist corrosion, which makes it a reliable and low-maintenance solution for outdoor lighting. Moreover, because of its sturdy construction, it is less prone to damage from external factors such as wind or accidents.

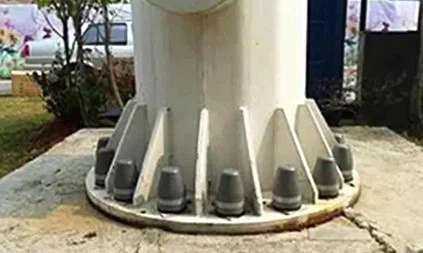

Safety

With a strong, stable base and rigorous safety testing, the 12 meter high mast pole offers reliable and safe operation, minimizing the risk of accidents or malfunction. The pole has been designed to meet relevant safety standards and undergoes testing to ensure that it can withstand heavy loads, high winds, and other potential hazards. Customers can be confident in the safety and reliability of the high mast pole, ensuring that it will provide effective lighting for years to come.

Technical Specifications

Product Name	12 meter High Mast Pole
Pole height	12m-30m
Shape	Multi-pyramidal, Columniform, polygonal, conical
Pole material	Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
Light power	400W-5000W
The lamp body is generally to be applied	High-pressure sodium lamp/Metal halide lamp/LED light
Tolerance of the dimension	within 2%
Ingress Protection Rating	IP65
Working Temperature	-40-50
Pole Surface treatment	Hot dip galvanized
Joint of Poles	Insert mode, inner flange mode, face-to-face joint mode
Thickness	4-12mm for high mast light
Production Process	Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal)→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Lifting system	The lifter is fixed in the inner of the pole with a lifting speed of 3-5m/min Equipped electromagnetism brake and break-proof device, you should have manual operation when the power cut
The electric appliance control device	The electric appliance box is set on the holder of the pole, lifting operation could be set 5 meters away from the pole by wire
Wind loading	160 Km/Hour
Application	Airport, seaport, plaza, stadium, square, highway, and streetway
