300 Watt Outdoor Flood Light
  • 300 Watt Outdoor Flood Light
  • 300 Watt Outdoor Flood Light
  • 300 Watt Outdoor Flood Light
  • 300 Watt Outdoor Flood Light
  • 300 Watt Outdoor Flood Light
  • 300 Watt Outdoor Flood Light

300 Watt Outdoor Flood Light

Product name,300 watt outdoor flood light
LED LED Type,SMD3030
Color Temperature(CCT),3000K/4000k/5000k/6500k
Beam Angle,30°/60°/90°/120°
Color Rendering Index (CRI) ,Ra>80
Power Supply Efficiency >88%
LED Luminous Efficiency,120-160lm/w
Power Factor (PF),>0.9
Total Harmonic Distortion (THD),≤15%
IP Rank,IP 66
Net Weight,8.5kg
Certicate,CE, CB, SAA
Voltage,AC100V-240V 50/60HZ
Lamp size,524*545*65mm

Product Details

Production Introduction

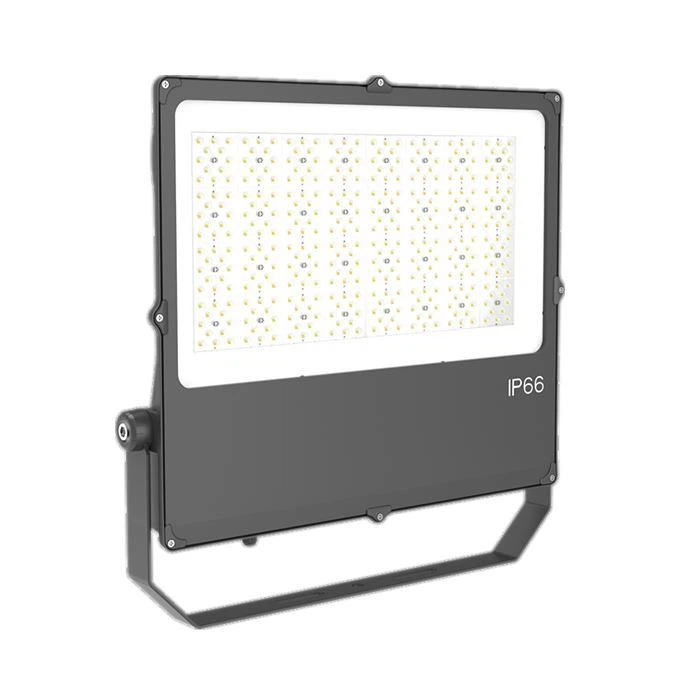

300 watt outdoor flood light

300 watt outdoor flood light

Beam angle 30°/60°/90°/120°/T2M/T3M.

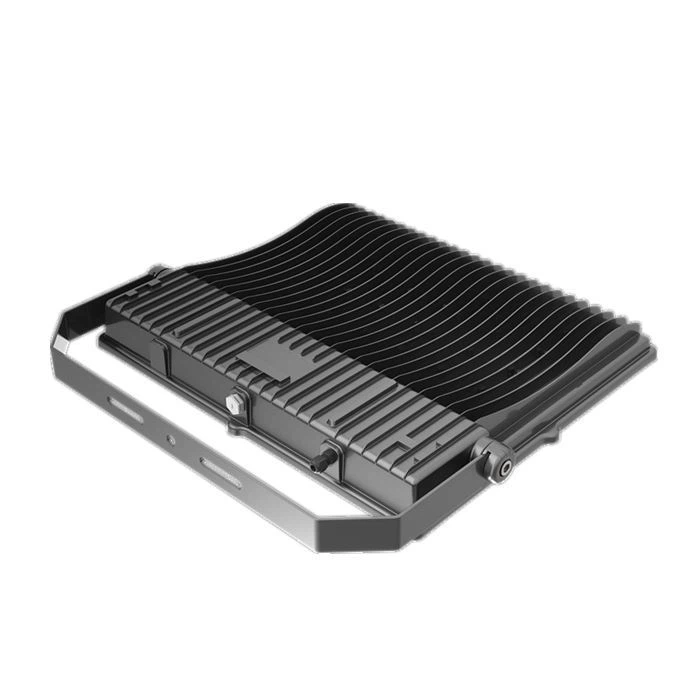

Integrated die-casting aluminum, housing, elegant appearance. Good heat dissipation, long lifespan. High efficiency,140lm/w available. Tempered glass, surface coating, process, excellent corrosion-proof. 10W-350W IP 66.

300 Watt Outdoor Flood Light1 (2)

Item No.S3-120WS3-150WS3-180WS3-200WS3-250WS3-300WS3-350W
VoltageAC100V-240V 50/60HZ





Power120W150W180W200W250W300W350W
Net Weight4.0kg4.0kg4.7kg4.7kg5.7kg8.5kg8.5kg


LED TypeSMD3030 300 watt outdoor flood light
Color temperature(CCT)3000K/4000K/5000K/6500K
Beam angle7°/15°/30°/60°/90°/120°/T2M/T3M
Color Rendering Index (CRI)Ra>80
Power supply efficiency>88%
LED Luminous efficiency120-160lm/w
Power factor(PF)>0.9
Total Harmonic Distortion(THD)<=15%
Protection gradeIP66 300 watt outdoor flood light
CertificationCE,CB,SAA

300 watt outdoor flood light (1)300 watt outdoor flood light (2)

300 watt outdoor flood light (4)300 watt outdoor flood light (5)


300 Watt Outdoor Flood Light


Installation for 300 watt outdoor flood light

1.Fix the bracket on the wall by screws

2.Adjust the lamp body to proper orientation 300 Watt Outdoor Flood Light.

3.Fix the srews that connecting the bracket and the lamp body.

4.Connect the wires.Brown wire is L,blue wire is N,and yellow-green wire is G.

5.Three ways to install 300 Watt Outdoor Flood Light.


300 Watt Outdoor Flood Light1

300 Watt Outdoor Flood Light Application for Billboard, road, tunnel, bridge and culvert, square, building

300 Watt Outdoor Flood Light (2)

Packing details

LED FLOOD LIGHTS (22)

Certification

300 Watt Outdoor Flood Light

Contact us

300 Watt Outdoor Flood Light
