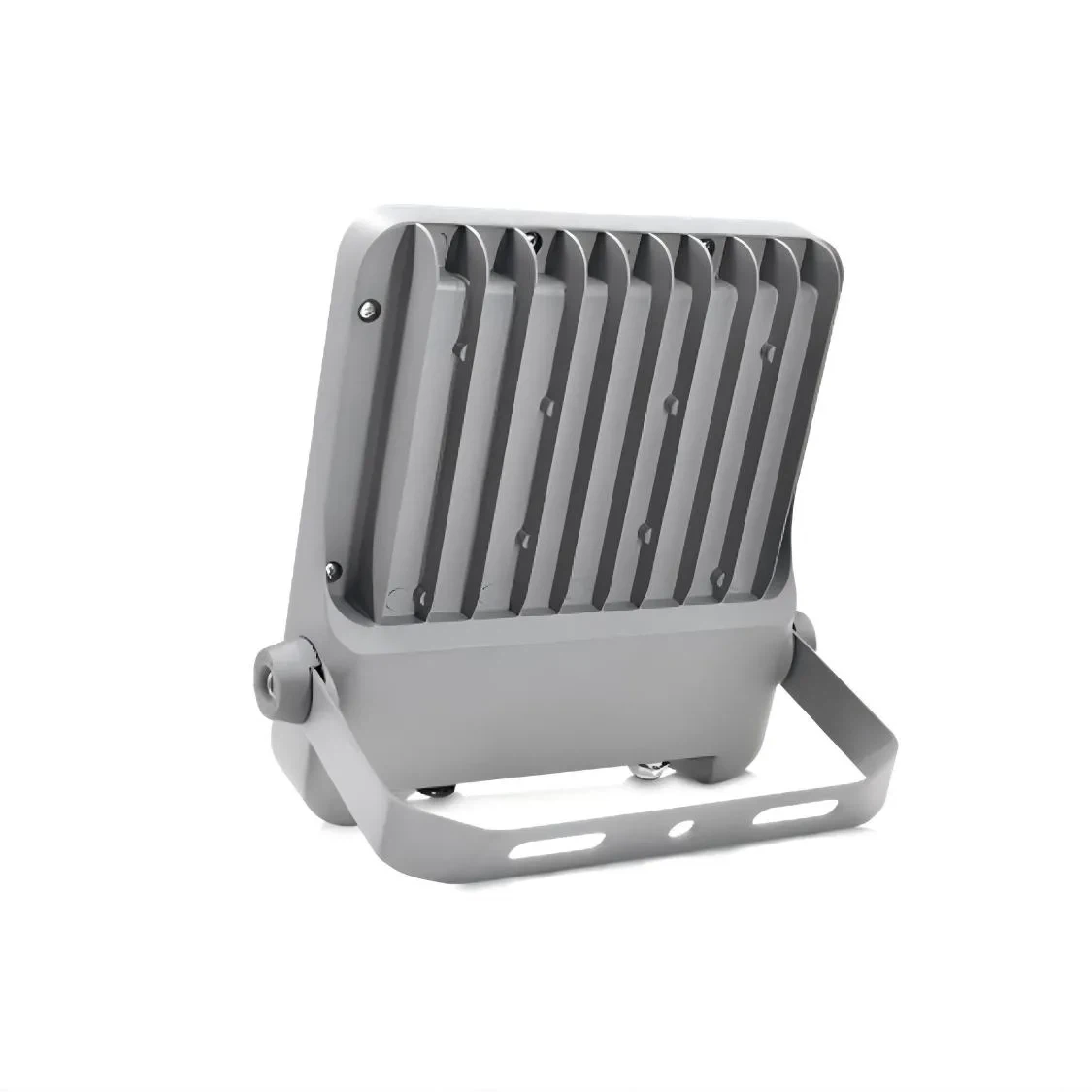

Industrial Outdoor LED Floodlight IP66
1. Power:50-400W
2. Luminous Efficacy: 150 lm/W
3. Life span: ≥ 50000H
4. CCT: 2700-6500K
5. Warranty: 5 Years
6. Impact Rating: IK08
7. IP Rating: IP66
8. Input Voltage: AC100-277V
9. Light Distribution: Control in 30°/ 60°/ 90°/ 120°options.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
Yahualighting's Industrial Outdoor LED floodlight IP66
KEY FEATURES
- High Efficiency & Wide Power Range: Up to 150 lm/W, available from 50W to 400W, delivering powerful illumination with 60% energy savings vs traditional HID lights.
- Advanced Heat Management: ADC12 die-cast aluminum housing and integrated heat sink ensure quick heat dissipation and long lifespan, optimized through finite element thermal analysis.
- Rugged & Weatherproof Design: IP66 waterproof, IK08 impact resistance, and anti-corrosion coating-ideal for harsh outdoor or coastal environments.
- Precision Optics for Any Scene: Multiple beam angles (30°/60°/90°/120°) with optical PC lens for accurate, uniform light distribution.
- Flexible Installation & Modern Look: 180° adjustable diagonal bracket supports wall, pole, or ground mounting; ultra-thin body for a sleek architectural appearance.
CONSTRUCTION
Housing: High-strength ADC12 die-cast aluminum body with anti-corrosion powder coating ensures long-term durability in harsh outdoor environments.
Ingress Protection: Rated IP66 with IK08 impact resistance, featuring silicone sealing and waterproof wiring for reliable outdoor performance.
Finish: UV-resistant powder coating maintains appearance and corrosion resistance over time.
Appearance: Ultra-thin, modern, and elegant profile suitable for both industrial and architectural installations.
OPTICAL SYSTEM
Light Distribution: Precision optical PC lenses provide accurate beam control in 30° / 60° / 90° / 120° options.
Lens Material: UV-stabilized optical-grade polycarbonate prevents yellowing and ensures long-term transparency.
Reflector: High-temperature nano material reflector enhances uniformity and light output.
Light Source: Equipped with Lumileds high-efficiency LEDs, achieving luminous efficacy up to 150 lm/W and consistent color performance.
ELECTRICAL
Driver Options: Compatible with multiple brand-name LED drivers; intelligent IC control circuit provides short-circuit, over-voltage, and low-voltage protection.
Voltage: Universal input 100–277V AC.
Surge Protection: Built-in surge suppression ensures stable performance in harsh electrical environments.
Long lifespan: Integrated heat sink and breathing vent design reduce internal temperature and prevent condensation, ensuring long LED lifespan.
INSTALLATION
Mounting: Adjustable diagonal-cut bracket allows flexible aiming and quick installation on walls, poles, or ground surfaces.
Adjustment: Full 180° rotation enables precise illumination direction for various applications.
Wiring: Factory-sealed gland with waterproof connector ensures secure power entry.
Accessories: Optional slip-fitter and trunnion brackets available.
INTENDED USE
Its streamlined, ultra-thin housing and adjustable 180° mounting bracket make this LED floodlight ideal for a wide range of applications, including:
Building facades: Highlight architectural features with uniform, high-luminance lighting that enhances night-time aesthetics.
Sports grounds: Provide powerful, wide-angle illumination for outdoor arenas, basketball courts, and training fields.
Parking lots: Ensure safety and visibility for vehicles and pedestrians with energy-efficient, long-lasting light coverage.
General area lighting: Perfect for warehouses, loading docks, or open public spaces requiring consistent and durable illumination.
Specifications
|
Model / YH-FL-400W |
50W-E |
100W-E |
150W-E |
200W-E |
300W-E |
400W-E |
|
Power |
50W |
100W |
150W |
200W |
300W |
400W |
|
Efficacy |
150lm/w |
|||||
|
CCT |
2700-6500K |
|||||
|
CRI |
≥ 70Ra |
|||||
|
LED |
Philips 3030/ Lumileds 2835 |
|||||
|
PF |
>0.97 |
|||||
|
Input Voltage |
AC100-277V |
|||||
|
THD |
15% |
|||||
|
N.G . |
1.3kg |
2.1kg |
3.4kg |
4.6kg |
5.8kg |
8.3kg |
|
Size ( mm) |
263*224*45 |
315*269*50 |
370*322*56 |
416*352*58 |
481*408*60 |
490*520*65 |
|
Beam Angle |
30°/60°/90°/120° |
|||||
|
Work Temp |
-40~ +6 0℃ |
|||||
|
LED Junction Temp |
≤ 80℃ |
|||||
|
Humidity |
25%~90% RH, no condensing |
|||||
|
Life span |
≥ 50000H |
|||||
|
IP Grade |
IP66 |
|||||
|
IK Grade |
IK08 |
|||||
|
Product Material |
||||||||
|
Power Wire |
Body material |
Electronic security level |
||||||
|
Cable(3*1mm²) L=0.5m |
Aluminum+PC+Glass |
Class I |
||||||
Our factory & quipment
100 sets of 400W YH-FL-400W floodlights exported to Nigeria.
