LED High Bay Pendant Lights
  • High Bay Pendant Light Fixture
  • High Bay Pendant Light Fixture
  • High Bay Pendant Light Fixture
  • High Bay Pendant Light Fixture
  • High Bay Pendant Light Fixture

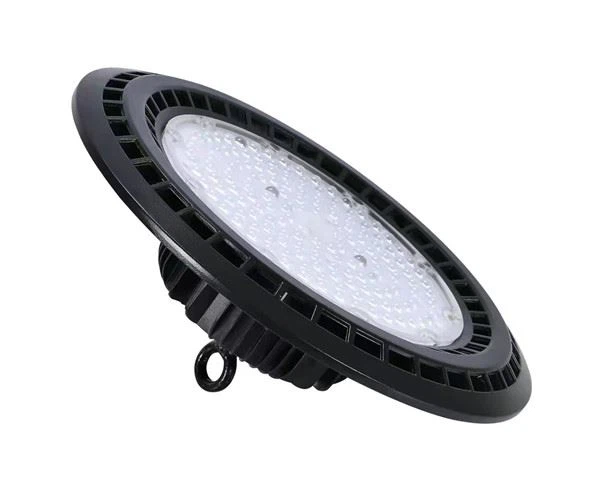

LED High Bay Pendant Lights

Power: 200W
Lumen:110-120lm/W
PF: >0.95
Material: Die-cast aluminum
Waterproof Grade: IP65
CRI:>80
Color temperature: 2700K-7000K
Beam angle: 60°,90°,120°
Warranty: 3 years
MOQ: 6 PC, On time delivery, Batch order save 5%-10%

Product Details

200W LED High Bay Pendant Lights are made of high-quality aluminum, fine craftsmanship, beautiful appearance, ducted heat dissipation design, built-in heat sink, and superior heat dissipation. It reduces the weight of light, and alleviates light decay, but also extends the service life of LED.

These high bay lights use an imported high-brightness LED light source, a built-in high-power constant-current drive power supply to ensure high energy efficiency and long and stable operation.

In addition, with long life and high stability, this high bay light has good resistance to overcurrent, overvoltage, lightning strike, and high temperature, fully ensuring the long life and high stability of LED.

light high bay

Features of LED High Bay Pendant Lights

High Brightness LED Beads

◆High Brightness LED Beads


housing

◆One-piece die-casting aluminum housing

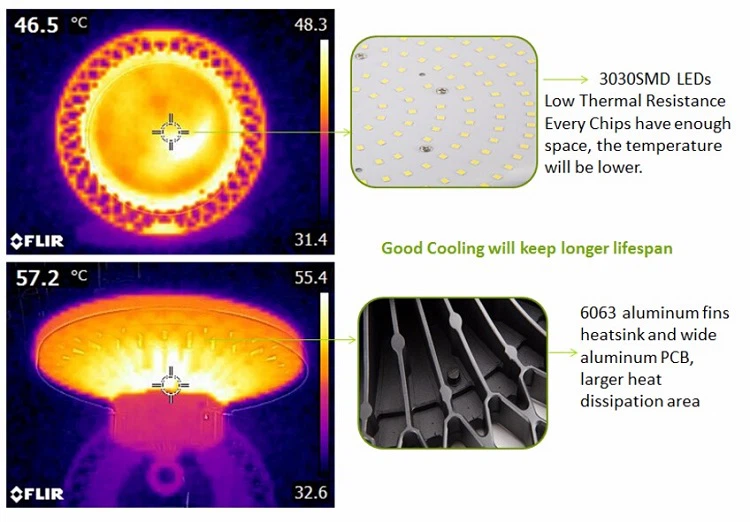

Convective radiator design, scale design lamp body, fast heat dissipation

◆Convective radiator design, scale design lamp body, fast heat dissipation


Use LED lamp beads, high brightness, small light decline, long service life

Solid and sturdy lamp body, die-cast aluminum is an environmentally friendly material, with no ultraviolet and infrared radiation, and no mercury pollution.


Aluminum shell, heat dissipation design, faster heat dissipation, low power consumption

, improve the service life of the lamp



Fishing Ring Design

◆Fishing Ring Design


IP65

◆IP65 grade, not afraid of thunderstorms


bracket

◆Fixed structure


The ring is made of high-quality material, which is safer to use


Strengthen glue sealing ring, increase waterproof performance, not easy to rust, more durable


Anti-loosening design, a screw is not easy to loosen, which improves safety


Specification


Product

UFO High bay light

Power

200W

PF

>0.95

Input Voltage

AC 85-265V

Frequency range

50~60Hz

Light distribution

Symmetrical/circular spot

CCT

2700K-7000K

LED luminous

25000lm (110-120lm/W)

CRI

80

Beam angle

60°,90°,120°

IP Grade

IP65

LED chip

LED SMD

Material

Die-cast Aluminum+PC

Working temperature

-30~65°

Working lifespan

50000Hr

Dimension(mm)

Φ302*H93

N.W./pc

2.37KG

Color box size

30.5*30.5*11.8CM

QTY/CTN

1 Carton/6 pc

Carton size(cm)

62.5*31.5*38CM

G.W./CTN

18.5KG

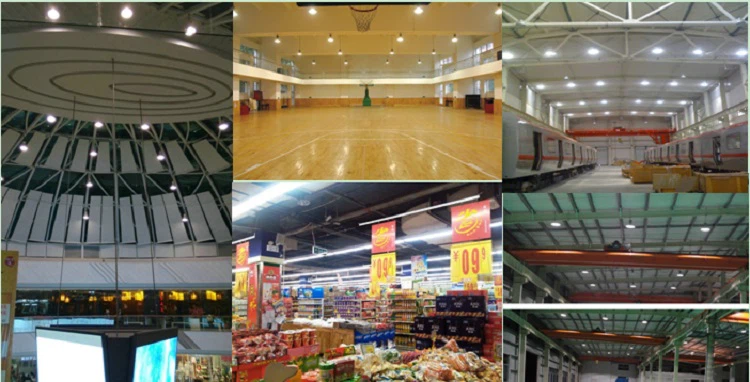

Application of LED High Bay Pendant Lights

A wide range of applications, IP65 grade, waterproof and lightning-proof, indoor and outdoor places are suitable, such as warehouses, factories, railway stations, workshops, stadiums, exhibition halls, shopping malls, gas stations, and other places.

high bay lighting application

◆Install

diagram1

diagram2

◆Package

package1

Why choose Yahua outdoor LED lighting products?

About us

Yahua Lighting was founded in 2001. We focus on outdoor lighting and industrial lighting, integrating R&D, production and sales, and are committed to becoming the world's leading LED lighting solution provider. The company has advanced research and development team and manufacturing workshop. Our products have passed CE, and ROHS certification, in line with the international quality standards of LED lights. The company's best-selling products are solar street lamp products, LED light products, solar power generation systems, etc., and the company's market is spread around the world.

display

Company

conpany2

◆FAQ

Q1: Are you a manufacturer?

A: Yes, we have our own factory with over 13 years of R&D and manufacturing experience based on ISO quality management since 2001.


Q2: How about the lead time of UFO LED High Bay Light?

A: 5-7 days for sample order, 15-25 days for mass production order based on order quantities.


Q3:How do you ship the UFO high bay light?

A: By SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc) are optional.


Q4: Can you print my logo on UFO LED High Bay Light?

A: We provide OEM service to our customers, we can help to make the label and color box according to your requirements.
