Portable Solar Generator Outdoor Power Solar Panel Led Lighting System
Power:300W,500W,1000W
Operate:Press USB button 1-2S for ON/OFF switch
Agreement:QC3.0;PD3.0;AFC15W;APPLE2.4A
Port type USB-C
Output Power:Max.60W
Output Voltage/ Current:5-20V/3A
Efficiency>85%
Output Voltage Ripple<200mV
Over-Discharge Protection:3.1A
Output short circuit Protection:Yes
LED Lighting source:High brightness LED(2835)
3200K/Warm white
AC Interface - Case Pressure Resistance,2KVAC/50HZ
Certification:FCC、UN38.3、PSE、MSDS、CE
Environmental Protection:RoHS
H.S code:8507600090
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

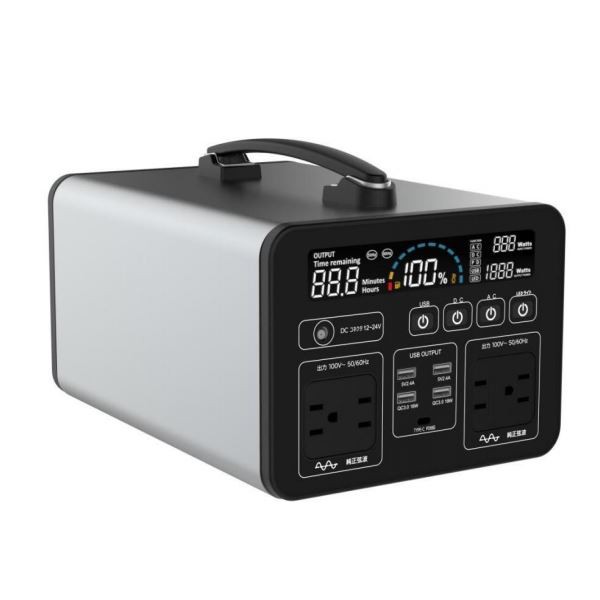

Portable solar generator outdoor power solar panel led lighting system

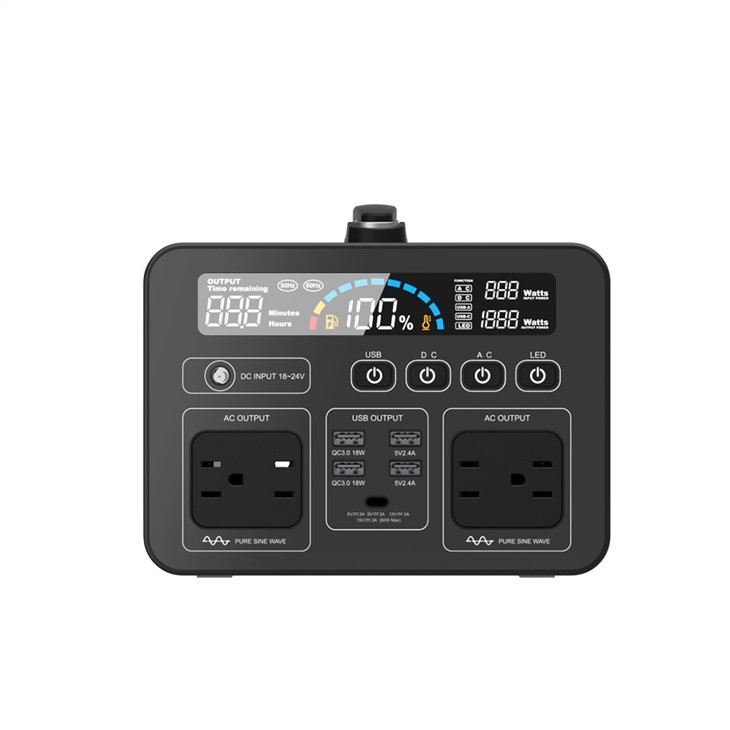

S.N. | Name | Description |
1 | Display | Please see below detail description |
2 | DC Button，USB button | Press buttons 1-2S for ON/OFF switch |
3 | DC Port | DC Output port |
4 | LED Light | Lighting, Astigmatism Lights |
5 | Car charger | 13V output |
6 | DC Port | Charging only |
7 | USB | QC3.0 |
8 | TYPE-C | PD60W |
9 | USB-A | 5V / 2.4A |
10 | AC Button | Press buttons 1-2S for ON/OFF switch, Fast press 3 times for frequency switch. |
11 | AC Output | Can be customized accordingly. |
12 | LED Button | Press buttons 1-2S for ON/OFF switch, 1 click for model switch |
S.N. | Name | Description |
1 | Charging Method | Indicates Charging method, with DC; CAR; PV three ways. |
2 | SOC | Shows remaining SOC, flash when charging. |
3 | SOC (%) | Accurate remaining power percentage. |
4 | Time | Display remaining input/output time, calculated automatically from different loads. |
5 | Real Time Power | Display real time input/output power. |
6 | Constant Current Mode | Constant current output mode turned on, cigarette lighter port is ready use, suitable for non-capacitive loads, like motor. |
7 | Function Status | Indicates different output model turned on. |
8 | Constant Current State | Shows the status of fully charged to another energy storage battery. |

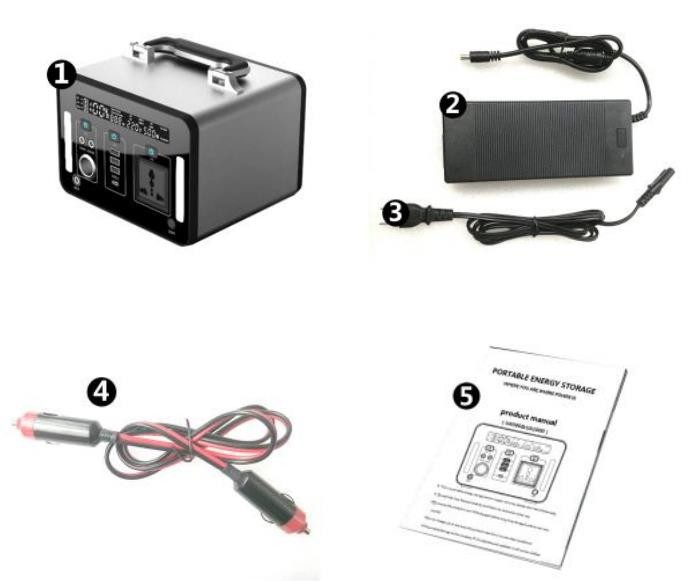

Packing list,
No. | Item | Description |
1 | Portable Power Station | NA |
2 | Adapter | On grid power adapter connect to the battery(standard 100W) |
3 | Power Cable | On grid battery charger. |
4 | Car Charge Cable | Car charging |
5 | Instructions | User manual and warranty card |
