Integrated Solar LED Street Light
• Luminous Efficacy: 160lm/W
• Designed for roads, villages, and municipal areas
• LiFePO₄ battery and monocrystalline solar panel
• Custom configuration for pole height and road width
• Motion sensing, time control, and optional 4G IoT
• OEM/ODM and bulk project supply
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
Integrated Solar LED Street Light
All-in-one solar street lighting for roads, villages, communities, and public areas. The system integrates an LED luminaire, monocrystalline solar panel, LiFePO₄ battery, and controller in one compact unit-reducing wiring and installation work.
Available in 60W, 80W, and 100W configurations, with IP66 protection, motion sensing, time control, and project-based mounting options. An optional 4G IoT module enables remote monitoring of battery, solar panel, and lighting performance, along with fault alerts, remote parameter adjustment, and centralized management across multiple lights.
Technical Specifications
| Power | 60w | 80w | 100w |
| Solar panel | DC18V 25W | DC18V 35W | DC18V 45W |
| LiFePO4 Battery | 12.8V 10Ah lithium battery | 12.8V 12Ah lithium battery | 12.8V 18Ah lithium battery |
| Charging time | 6 Hours | ||
| Working time |
Full power: 12 hours; Saving mode:> 20 hours |
||
| Dimension | 400*330*52mm | 690*330*52mm | 830*330*42mm |
| Net weight | 5kgs | 8kgs | 12kgs |
| Mounting height | 3-4m | 4-5m | 5-6m |
| Operating Temperature | -40°~+50° | ||
| Luminous Efficacy | 160lm/W | ||
| Beam angle | 120° | ||
| Certificate | CE,RoHS,FCC,IP66,IK08 | ||
| Warranty | 5 Years | ||
Integrated LED Solar Street Light
Application: Public area lighting, garden, village, road, residential, etc.
Easy to install
100% solar powered
Built-in infrared sensor
Rust-proof, dustproof

Monocrystalline Silicon Panel
High-efficiency monocrystalline solar cells deliver up to 23% conversion efficiency. Protected by tempered glass and waterproof sealing, the panel is built for long-term outdoor use and reliable performance in solar lighting applications.

Smart loT Module
Optional 4G IoT module supports centralized monitoring and remote management for solar street lighting projects. Track system performance, adjust lighting parameters, receive fault alerts, and manage multiple lights remotely.

High-quality LED chips
Premium LED chips provide up to 160 lm/W luminous efficacy for bright, uniform road lighting. With moisture-resistant construction and stable light output, they help ensure long service life and reduced maintenance.
Advantages of Integrated Solar LED Street Light:
-
LED light, solar panel, lithium battery, and controller, all in one compact design and easy to install and ship.
-
No wiring, 100% solar powered, easy to install and ship.
-
Built-in infrared sensor, that can adjust the light output automatically.
-
Rust-proof, dustproof, and waterproof IP66.

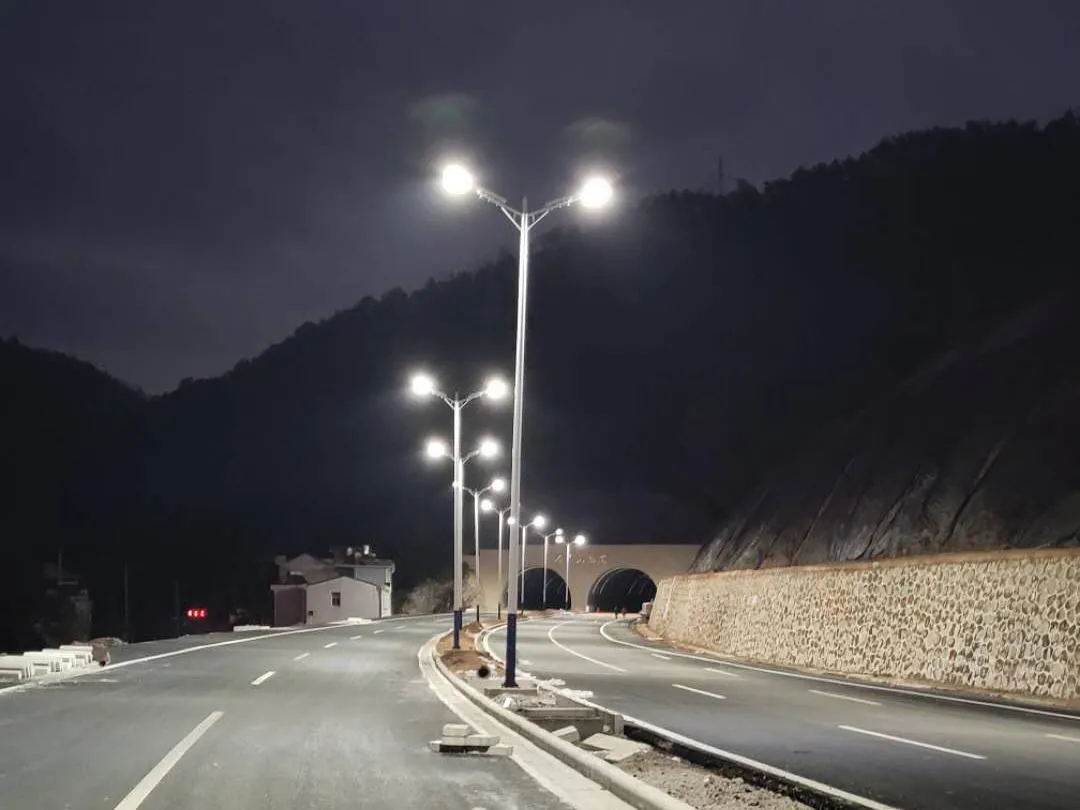

projects









Certifications

Factory overview

contact us
For cost of this Integrated Solar LED Street Light with 5 Years Warranty, Please:
📩 Send us your inquiry and receive a professional response within 24 hours.
FAQ

01. What certifications do you have for exporting solar street lights?
Our solar street lights comply with major international standards and certifications required for global markets. These include CE (LVD & EMC), RoHS, FCC, and IP ratings for product safety and environmental compliance. For specific regions, we can also provide additional certifications such as UL for North America, SABER for Saudi Arabia, SONCAP for Nigeria, and other local compliance documents. All lithium battery components are tested in accordance with UN38.3 standards and are supported by complete MSDS documentation to ensure safe transportation and customs clearance.
02. What is the standard warranty period of your solar street lights?
The standard warranty period for our solar street lights is typically 3 to 5 years, depending on the product configuration and project requirements. Key components such as lithium batteries, solar panels, and LED chips are covered under the same warranty terms as the complete system. During the warranty period, we provide technical support and replacement solutions for any non-human-induced quality issues, ensuring long-term reliability and customer satisfaction.
03. What is the normal lead time for bulk orders?
Under standard production conditions, the lead time for bulk orders is generally 2 to 4 weeks after order confirmation and deposit payment. This timeline excludes international shipping time. For large-scale projects or customized products, the lead time may vary depending on order complexity and material availability. During peak seasons, slight delays may occur, but we always provide a clear production schedule and timely updates to ensure transparency.
04. Can you provide OEM and ODM services?
Yes, we fully support OEM and ODM cooperation. Customization options include logo printing, product design adjustments, packaging customization, and functional upgrades such as lighting modes or smart control integration. Our engineering and sales teams will work closely with you to understand your project requirements and provide tailored solutions that align with your brand and market needs.
05. Do your solar street lights support smart control systems?
Yes, our solar street lights can be equipped with various smart control options, including light sensors, motion sensors, time-based dimming, and remote monitoring systems. For advanced applications, we also support IoT-based control platforms that enable real-time data monitoring, energy management, and centralized control. These features are especially suitable for smart city projects and large-scale infrastructure management.
06. What are the MOQ and lead time for full container orders?
For standard models, we offer flexible MOQ options-please contact our sales team for specific numbers based on your requirements. For full container load orders, production lead time is typically within 2 to 4 weeks. Larger or highly customized orders may require additional time. We recommend confirming specifications and quantities in advance to ensure optimal production planning and timely delivery.
