Smart LED Solar Street Light
1. Monocrystalline solar panel conversion efficiency: 24%
2. Luminous Efficacy: 180lm/W
3. IP Rating: IP65
4. Color Temperature: 5000-6000K
5. Control Mode: Time+Radar+Light Control
6. CRI: ＞70
7. Autonomous Operation: 3-5 Rainy Days
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
Featuring radar motion sensing (100% brightness on motion, 30% idle), this smart LED solar street light combines high-efficiency Philips LEDs (up to 180 lm/W) with a monocrystalline solar panel (24% conversion) and long-life LiFePO₄ battery (up to 8 years, explosion-proof).
Durable aluminum housing, IP65 rating, ±15° adjustable mounting, and MPPT controller ensure reliable performance in all weather. Customizable options include lighting mode, logo, color, and packaging-perfect for smart city, commercial, and residential applications.
Product Details

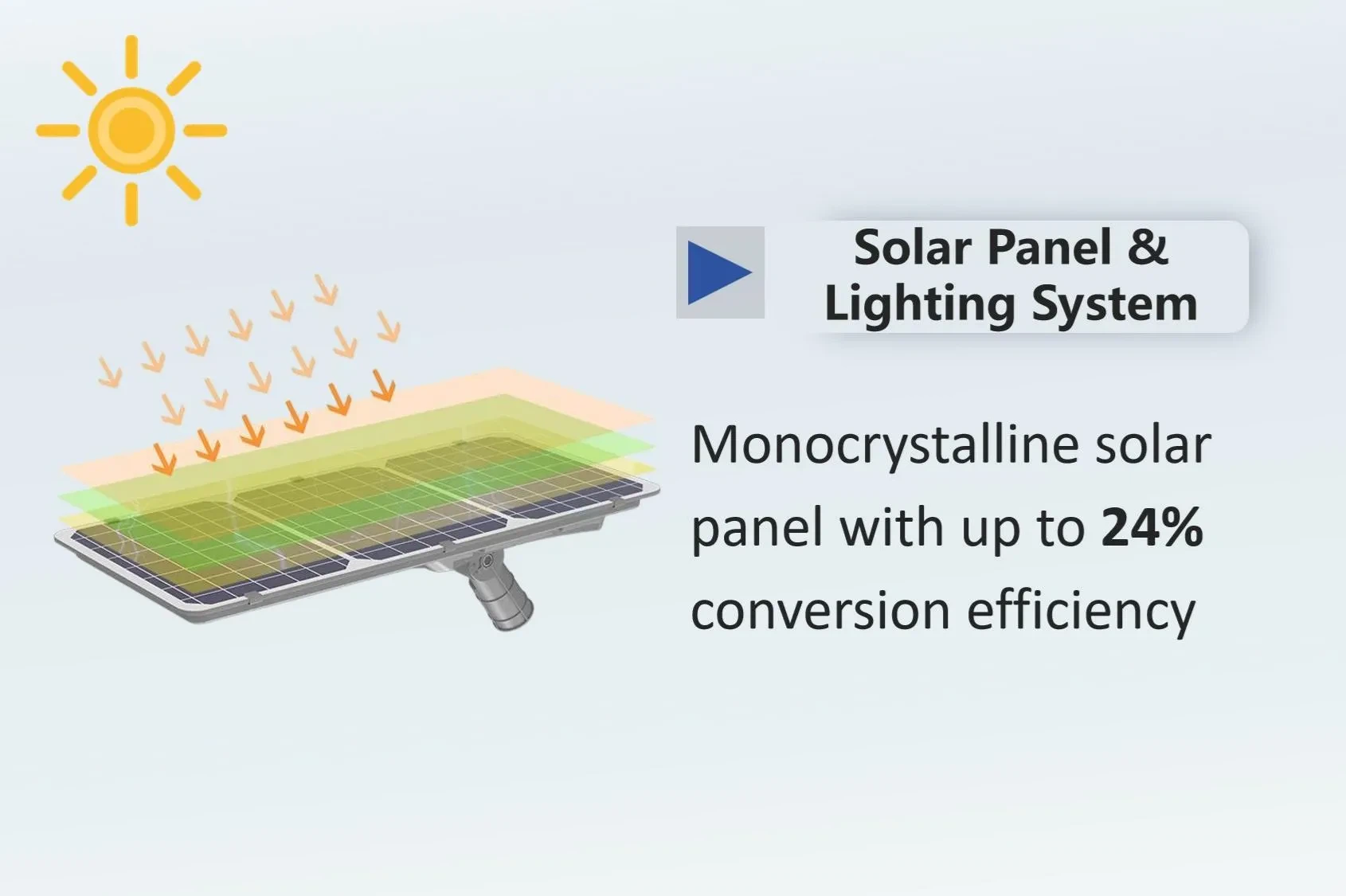

Solar Panel & Lighting System
- Monocrystalline solar panel with up to 24% conversion efficiency
- Die-cast aluminum housing for efficient heat dissipation
- High-efficiency Philips LED chips, up to 180 lm/W
- Adjustable mounting arm with ±15° tilt angle
- MPPT solar charge controller for optimized energy harvesting
Battery Lifespan
- LiFePO₄ battery with up to 8 years lifespan
- Warranty: 5–8 years
- High safety and stable performance
- Certified with ISO, CE, and RoHS
- Explosion-proof battery design for enhanced safety and reliability
Radar Motion Sensor
- Control Mode: Photocell + radar motion sensor
- 100% brightness when motion is detected
- 30% brightness when no motion is detected
- Detection height: up to 10 m, diameter: up to 15 m
- DIY working modes can be flexibly set via remote control
Products Specifications
| Power | 6 Modules 60W | 8 Modules 80W | 10 Modules 90W | 12 Modules 100W | 14 Modules 110W |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Product size | 830*360*50mm | 1080*360*50mm | 1210*360*50mm | 1310*360*50mm | 1510*360*50mm |
| LED QTY | 3030/6*6 | 3030/6*8 | 3030/6*10 | 3030/6*12 | 3030/6*14 |
| Battery |
LiFePO4 3.2V 60Ah |
LiFePO4 3.2V 75Ah |
LiFePO4 3.2V 90Ah |
LiFePO4 3.2V 105Ah |
LiFePO4 3.2V 120Ah |
| Solar panel Watt |
6V-60W | 6V-80W | 6V-90W | 6V-100W | 6V-110W |
| Luminous Efficiency | 180 lm/W | 180 lm/W | 180 lm/W | 180 lm/W | 180 lm/W |
| Color Temperature | 5000-6000K | 5000-6000K | 5000-6000K | 5000-6000K | 5000-6000K |
| CRI | ＞70 | ＞70 | ＞70 | ＞70 | ＞70 |
| Control Mode | Time+Radar+Light Control | Time+Radar+Light Control | Time+Radar+Light Control | Time+Radar+Light Control | Time+Radar+Light Control |
| Working Temperature | -25℃~60℃ | -25℃~60℃ | -25℃~60℃ | -25℃~60℃ | -25℃~60℃ |
| Autonomous Operation | 3-5 Rainy Days | 3-5 Rainy Days | 3-5 Rainy Days | 3-5 Rainy Days | 3-5 Rainy Days |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
Factory Overview
Customized Services
01
Controller & Battery
02
Lighting Solutions
03
Lighting Modes
04
Logo Branding
05
Product Color Options
06
Packaging Design
Certifications
