Solar Led Street Lamp
  • Solar Led Street Lamp
  • Solar Led Street Lamp
  • Solar Led Street Lamp
  • Solar Led Street Lamp
  • Solar Led Street Lamp
  • Solar Led Street Lamp

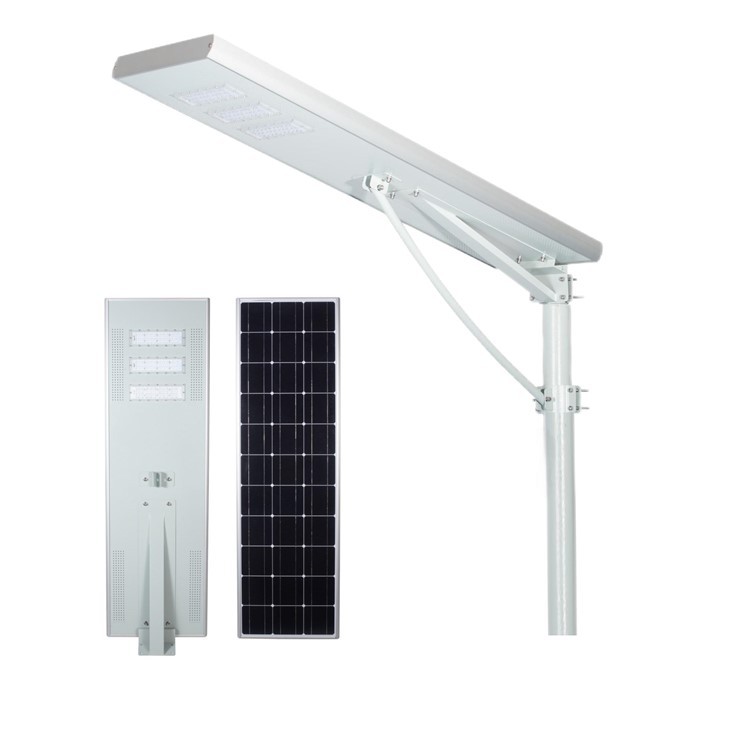

Solar Led Street Lamp

80w solar led street lamp 12800 lumens,amounted meter height for 8-9 meters,
Material: Aluminum+ PC reflector
Solar Panel(can be configured according requirements: 18V 100W(high efficiency>19.5%)
LED: Philips 3030 80W Led lamp 4. Battery: Li-lion lithium battery 12V 42AH
Mounting Height:8-9m
Light time:12 hours per night,backup time: 3-5 rainy days
Working Temperature:-20℃~+60℃
Charge Time:7 hours with good sunshine
Lighting mode:light control+ time control
10.Solar street light dimension:1450*480*60mm
N.W 26KGS MOQ: 1PC

Product Details

_20220606140629_

Yahua light solar light street

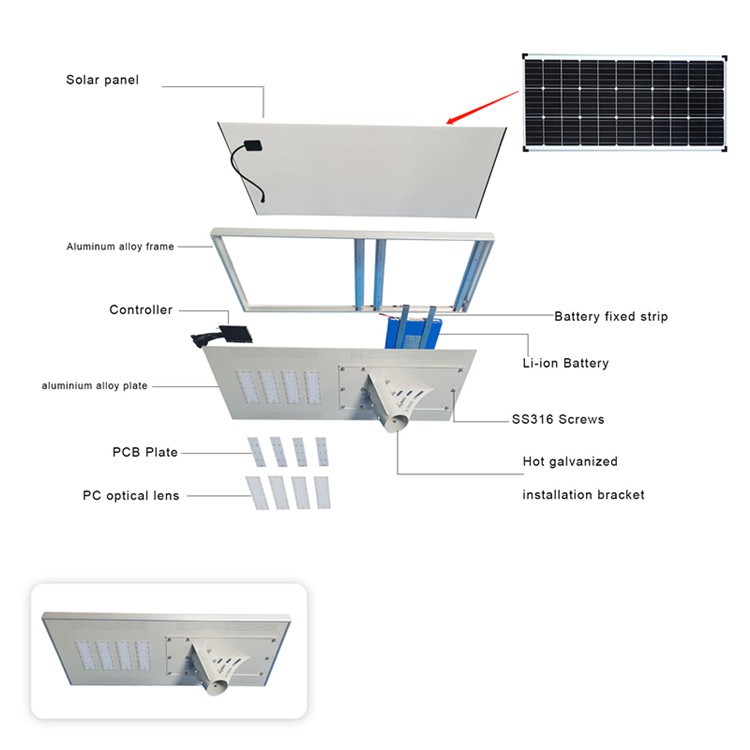

designed by a professional industrial design team, integrating solar panels, led sources, controller, battery, human body induction, and housing

2. Adjustable angle mounting bracket, suitable for various modeling lamp pole installation methods.3. Intelligent power adjustment, automatic weather judgment, reasoning, planning of discharge rules.4. Intelligent charging and discharging management, double protection of charging and discharging and intelligent equalization technology, battery cycles more than 2000 times

.5. Smart remote control, equipped with drone remote control, an a-long remote control distance of 30meters, and pass-through obstacles, and can set four lighting modes at will.

6. High-efficiency LED chips can reach 160/W, which is more than twice the average brightness of ordinary LED light sources, with a luminous angle of 140 degrees, and a wider irradiation area7. The whole lamp adopts a modular minimalist design, easy disassembly, installation, and, transportation.

100W

Production Introduction

Model:YHZ-SSL80W
Solar panel Max power:18V/100W (high efficiency imported silicon solar cell)
Solar panel Life time25 years
Battery Type12V/42AH Lithium battery( LiFepo4 Battery)
LED Max power12V 80W
Led chip brandHigh brightness Philips 3030
Lumen (LM)12800lm
LED Life time50000hours
Lighting Viewing Angle120°
Charge time(by sun):6-7hours (with enough strong shine)
Working time12 hours all night, 3-5 rainy days
Working TEMP( ℃ )-20~+60
CCT (k)6500k-7000k
Mounting height(m):8-9m
Space between light(m):25-30m
Lamps materialaluminum alloy
Certificate:ISO/CE / ROHS / IP65
Warranty period:3 years
Unit size:1375*420*60mm
N.W:25kg
G.W26kg
Carton size:1460*480*210mm
Q'ty/ctn:1sets/ctn
Working ModeMotion sensor /Time control
20GP container:200 set
40GP container:416 set

_

80w solar street light

Solar led street light

100W solar street lights

solar lights

solar street light

1

FAQ:

Q. Can I have a sample order for solar led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q.How long does the solar power can be stored?

A: Solar power of the all-in-one solar street light can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time of transportation to prevent damage.


Q: How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.


Q. What is the advantage of the battery?

A: Our integrated solar street light adopts a long-life lithium battery for storing energy, charging temperature at day time is between -25℃-60℃.


Q. How to control the luminance of the solar street light?

A: Our solar street light adopts motion sensor control & brightness sub-regulation. Here we especially introduce the brightness sub-regulation. Use remote control to set the brightness according to the time change. For example, from 6:00p.m. to 12:00p.m., 100% brightness; from 0:00a.m. to 06:00a.m.30% brightness. In that way, this new product can instead of common LED street light.

Q. What is the mounting height?

A: We suggest the solar street light of 20W, 30W, 40W for 3-5m, the solar street light of 50W, 60W, 80W for 6-8m.

Q. What is the distance?

A: For the distance, we suggest the solar street light of 20W, 30W, 40W for 10-15m, the solar street light of 50W, 60W, 80W for 20-25m.


Q. The controller of your solar street light has dual time control function?

A: our solar charge controller is designed with dual time control function, you can set up the lighting time and divide it into two parts, like 12 hours (6 hours full power lighting + 6 hours half power lighting)


Q. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q: Do you offer a guarantee for the products?

A: Yes, we offer 3 years warranty to our products including all parts.


Within those world well-known All In One Solar Street Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big solar led street lamp project ongoing. With products for sale, you can wholesale All In One Solar Street Light of good design at low cost and low price from our factory.
Hot Tags: solar led street lamp China, factory, manufacturers, supplier, wholesale, design, contractors, cost, price, project, for sale, high bay lighting, LED ceiling panel light 600x600mm, led solar street lights design, led recessed lighting, outdoor solar led lights, solar system lamp
