Solar Street Light With Infrared Sensor
Solar Panel: Monocrystalline Silicon
Solar Panel Lifespan: 25 years
LED Beads: Philips 3030 Chip
LED Beads Quantity: 120-420PCS
Luminous Efficacy: 180-230lm/W
Color Temperature: 2700-6500K
Lifespan: 50,000 hrs
Battery: Brand New Grade A Li-ion Battery
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Within those world well-known All In One Solar Street Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big solar street light with infrared sensor project ongoing. With products for sale, you can wholesale All In One Solar Street Light of good design at low cost and low price from our factory.
Product Overview

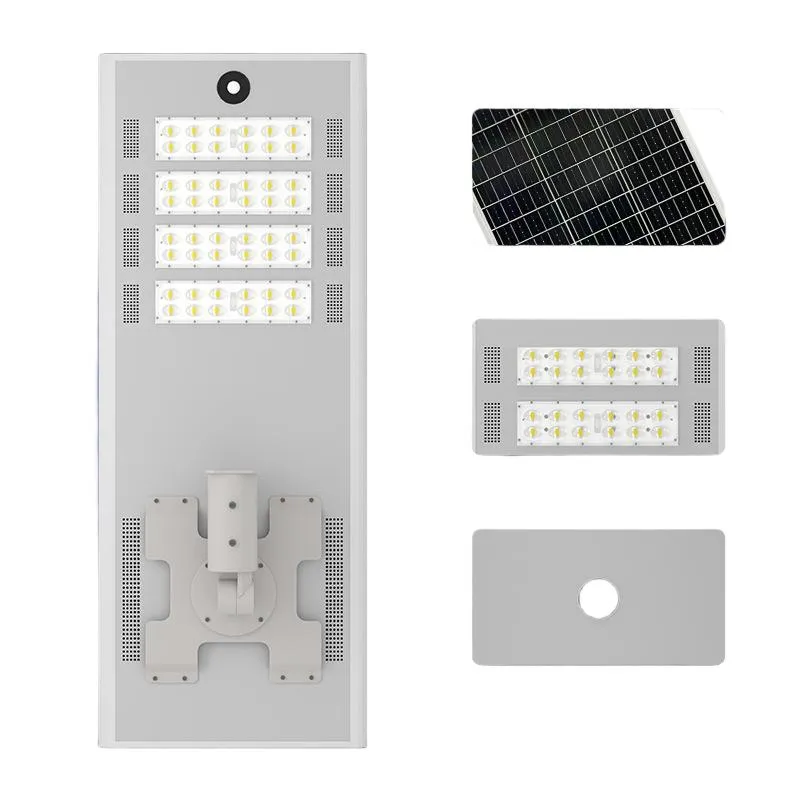

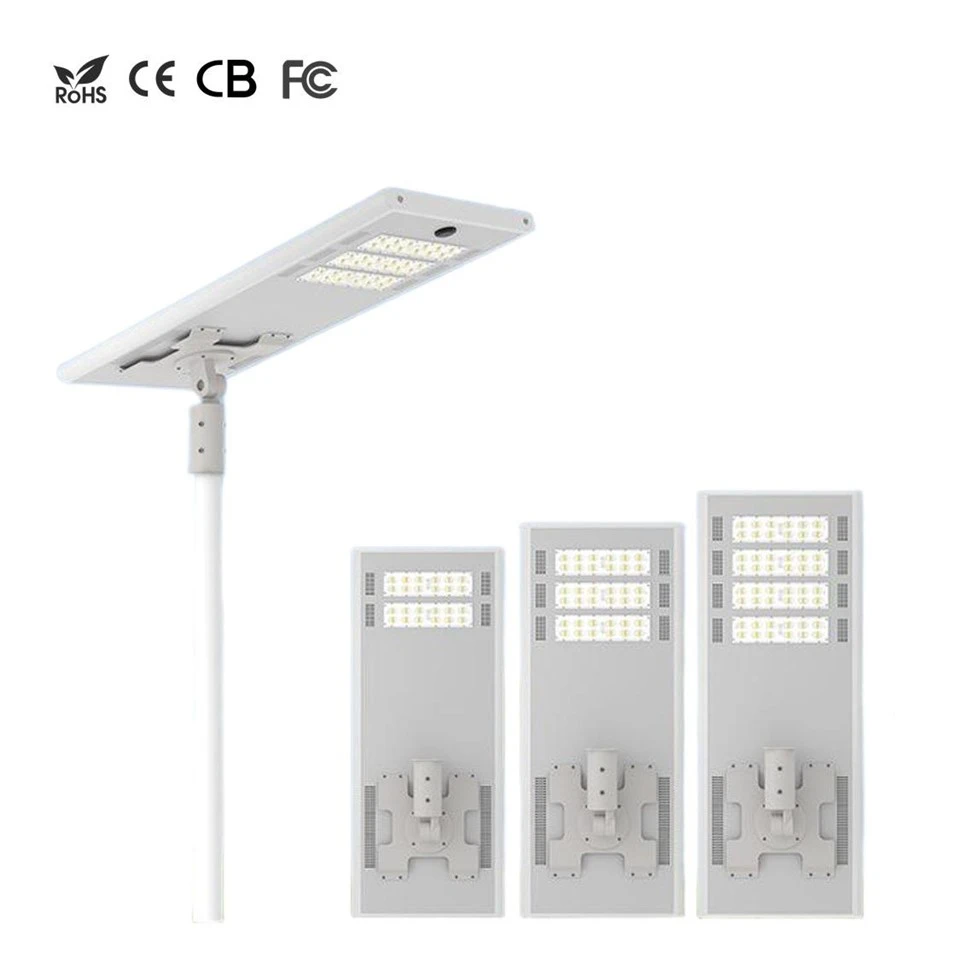

Solar Street Light with Infrared Sensor
This Solar Street Light with Infrared Sensor covers a power range of 60W to 420W, suitable for installation heights of 4–12 meters, with a high luminous efficacy of 180 lm/W.
It is available in both complete unit and semi-knocked-down supply modes, supported by comprehensive assembly documentation and technical assistance. This helps overseas customers reduce import duties and optimize logistics costs.
Widely applicable for roads, industrial parks, farms, and various outdoor scenarios, the system comes with a 3-year warranty.
Key Features

Core Components for All-Weather Durability
All models use high-efficiency monocrystalline solar panels, capable of full charging within 6–8 hours under optimal conditions. Paired with A-grade lithium batteries offering up to 3000 charge cycles, the system ensures long-lasting and stable energy storage.
The aluminum alloy housing combined with PC lenses ensures durability, with IP65-rated waterproof and dustproof protection, as well as strong resistance to wind, sand, and extreme temperatures.
All core components are standardized, ensuring that SKD transportation causes no performance loss-assembled products perform identically to fully built units.

Lighting + Surveillance Integration
The system comes standard with light control, time control, and radar sensing modes. It can be upgraded with dual microwave and infrared sensors for more precise detection-full brightness when motion is detected, and energy-saving mode when no movement is present. Additionally, it supports optional integration of HD remote monitoring cameras, enabling real-time video transmission and abnormal event alerts.
Thanks to its modular design, customized modules can be configured individually under SKD supply, meeting both security and energy-saving requirements across different applications. It is especially suitable for remote and unattended areas.

Flexible SKD Supply Solution
In addition to complete unit delivery, the product strongly supports SKD export mode. Modular disassembly significantly reduces packaging volume, increases container loading capacity, and effectively lowers international shipping costs and import tariffs.
We provide multilingual assembly manuals, video tutorials, and remote technical support, ensuring easy local assembly with minimal technical barriers. Full customization options are available, including pole height, color temperature, control modes, and security modules, making it adaptable to various project and distribution needs worldwide.
Parameters
|
Power |
60W |
120W |
180W |
240W |
300W |
360W |
420W |
|
Installation Height |
4-5M |
5-6M |
6-7M |
7-8M |
8-9M |
9-10M |
10-12M |
|
Solar Panel |
Monocrystalline Silicon 18V 50W |
Monocrystalline Silicon 18V 60W |
Monocrystalline Silicon 18V 70W |
Monocrystalline Silicon 18V 80W |
Monocrystalline Silicon 18V 90W |
Monocrystalline Silicon 18V 120W |
Monocrystalline Silicon 18V 150W |
|
LED Beads |
Philips 3030 Chip |
Philips 3030 Chip |
Philips 3030 Chip |
Philips 3030 Chip |
Philips 3030 Chip |
Philips 3030 Chip |
Philips 3030 Chip |
|
LED Beads Quantity |
120PCS |
120PCS |
180PCS |
240PCS |
300PCS |
360PCS |
420PCS |
|
Luminous Efficacy |
180lm/W |
180lm/W |
180lm/W |
180lm/W |
180lm/W |
180lm/W |
180lm/W |
|
Color Temperature |
3000-6500K |
3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
|
Lifespan |
50,000 hrs |
50,000 hrs |
50,000 hrs |
50,000 hrs |
50,000 hrs |
50,000 hrs |
50,000 hrs |
|
Battery |
32700 Brand New Grade A Li-ion Battery |
32700 Brand New Grade A Li-ion Battery |
32700 Brand New Grade A Li-ion Battery |
32700 Brand New Grade A Li-ion Battery |
32700 Brand New Grade A Li-ion Battery |
32700 Brand New Grade A Li-ion Battery |
32700 Brand New Grade A Li-ion Battery |
|
12.8V 230WH |
12.8V 307WH |
12.8V 409WH |
12.8V 512WH |
12.8V 614WH |
12.8V 768WH |
12.8V 1024WH |
|
|
Battery Cycle Life |
3000 cycles |
3000 cycles |
3000 cycles |
3000 cycles |
3000 cycles |
3000 cycles |
3000 cycles |
|
Control Mode |
Light Sensor + Timer + Radar |
Light Sensor + Timer + Radar |
Light Sensor + Timer + Radar |
Light Sensor + Timer + Radar |
Light Sensor + Timer + Radar |
Light Sensor + Timer + Radar |
Light Sensor + Timer + Radar |
|
Operating Time |
12hrs/day, 5-7 rainy days |
12hrs/day, 5-7 rainy days |
12hrs/day, 5-7 rainy days |
12hrs, 3-5 rainy days |
12hrs, 3-5 rainy days |
12hrs, 3-5 rainy days |
12hrs, 3-5 rainy days |
|
Charging Time |
6-8 hrs |
6-8 hrs |
6-8 hrs |
6-8 hrs |
6-8 hrs |
6-8 hrs |
6-8 hrs |
|
Protection Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Material |
Aluminum Profile + PC Lens |
Aluminum Profile + PC Lens |
Aluminum Profile + PC Lens |
Aluminum Profile + PC Lens |
Aluminum Profile + PC Lens |
Aluminum Profile + PC Lens |
Aluminum Profile + PC Lens |
|
Warranty |
3 years |
3 years |
3 years |
3 years |
3 years |
3 years |
3 years |
Installation Methods
