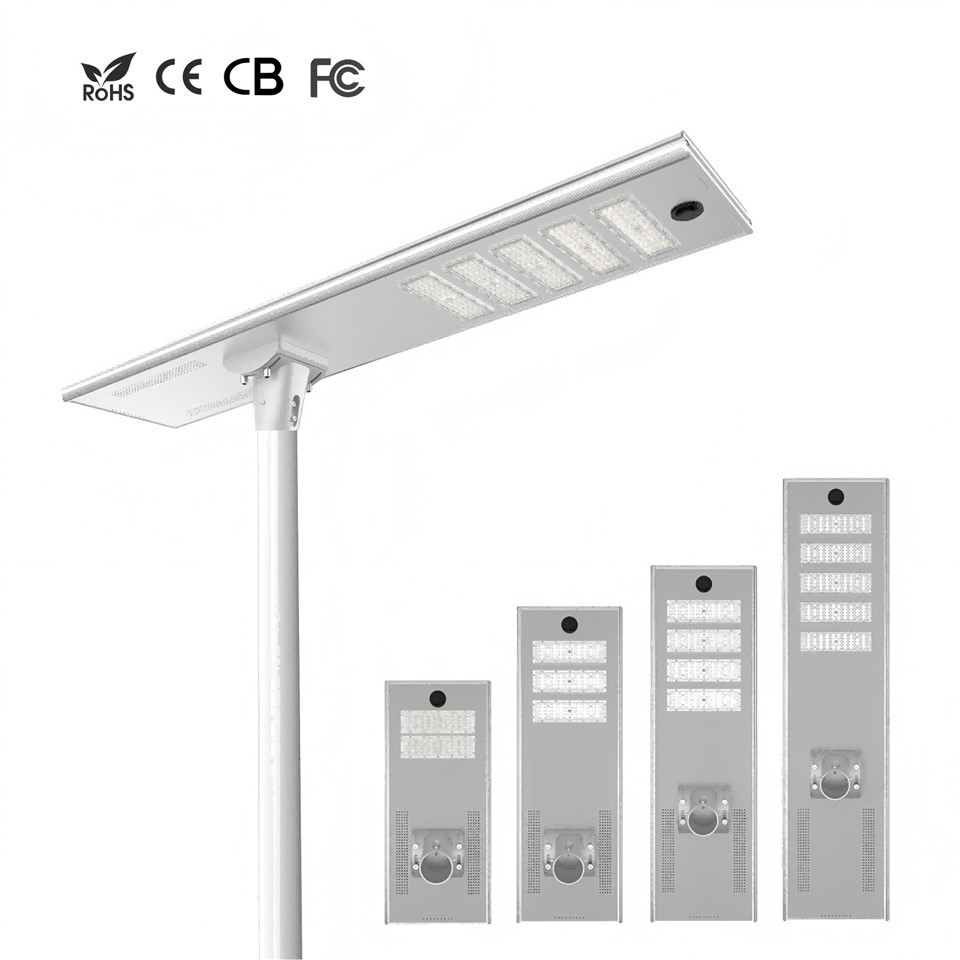

Solar Street Light With Pole And Sensor
Light Source：Philips 3030/100PCS
Solar Panel：18V 36W High-efficiency 23% Monocrystalline Silicon
Battery Type：12.8V 15Ah LiFePO4
Luminous Flux：2900-16310lm
Rainy Day Working Time：6-8 Days
Standard Charging Time：≥7H
Operating Temperature Range：-30℃~60℃
Certification & Protection Grade：CE, ROHS, IP65
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Within those world well-known All In One Solar Street Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big solar street light with pole and sensor project ongoing. With products for sale, you can wholesale All In One Solar Street Light of good design at low cost and low price from our factory.
Product Overview

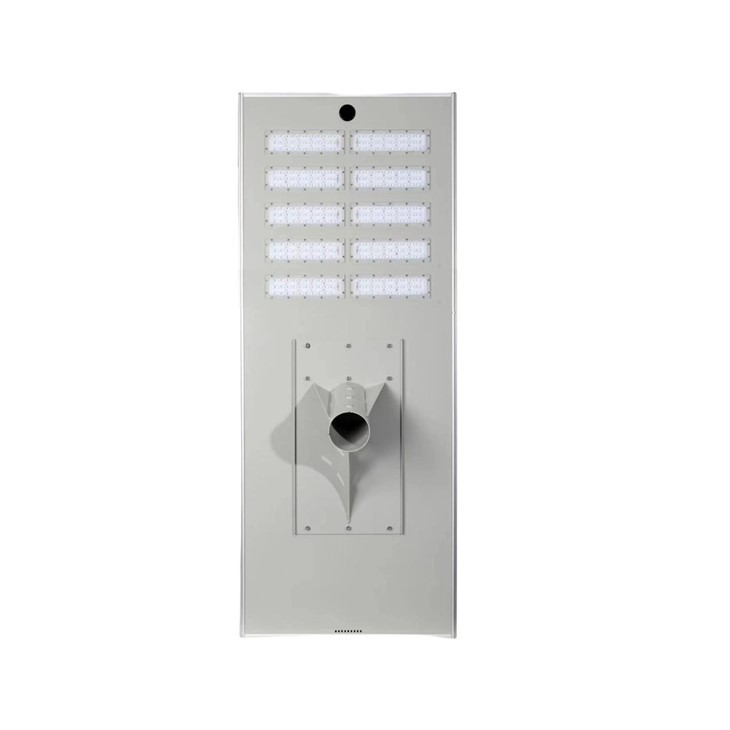

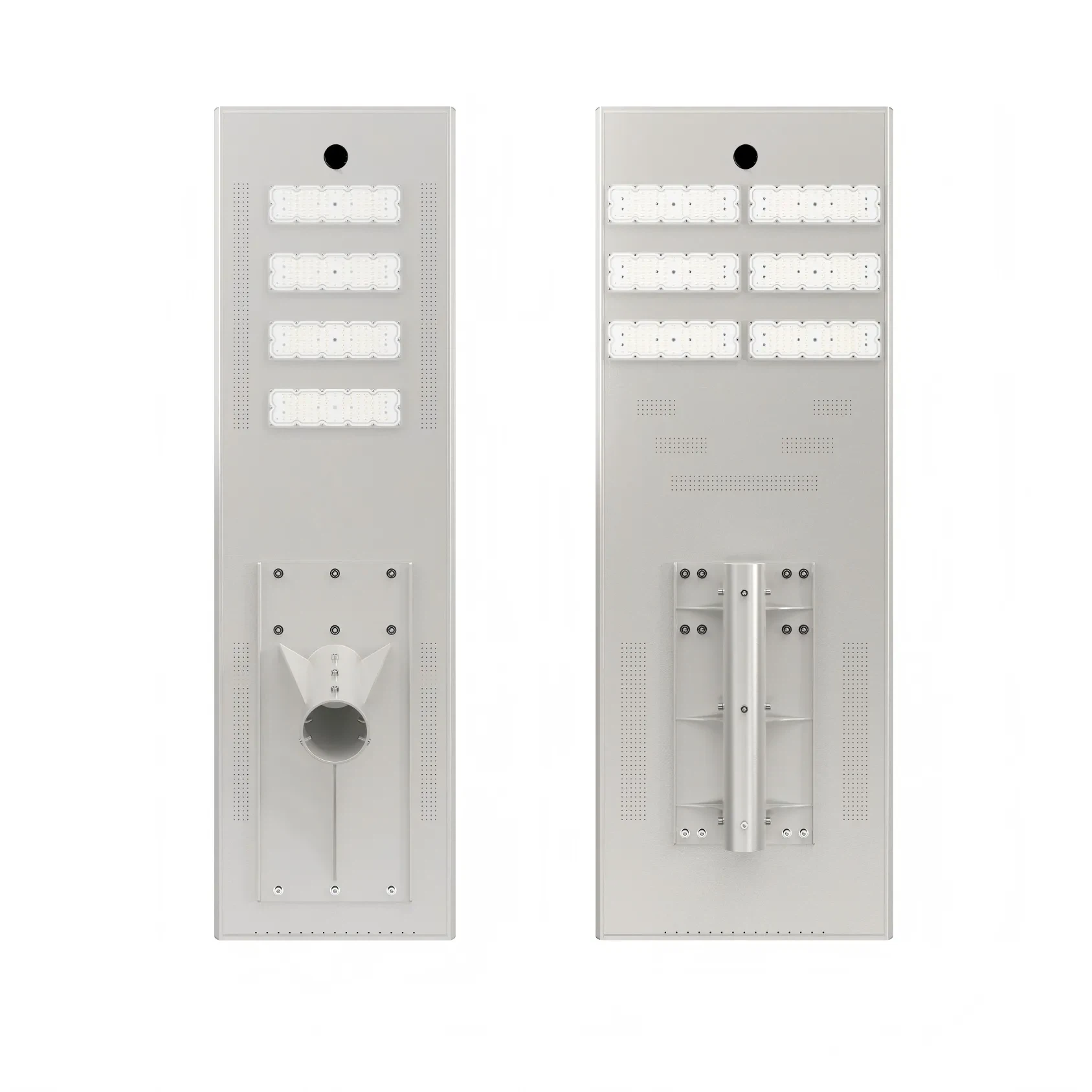

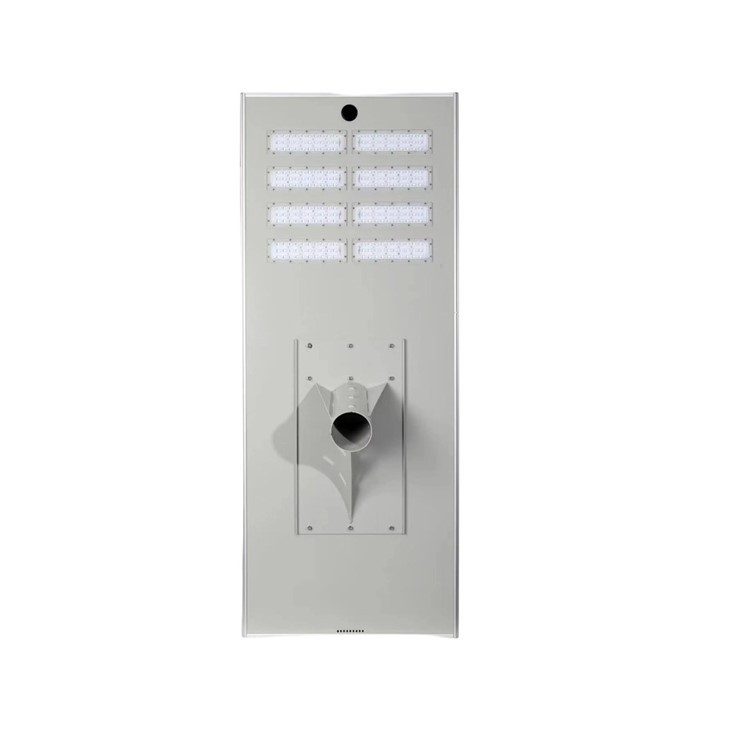

Solar Street Light With Pole and Sensor
Adopted high-efficiency monocrystalline silicon solar panel, durable LiFePO4 battery, premium Philips LED chips and high-performance MPPT controller, this Solar Street Light With Pole features fast charging, super bright illumination and multi-mode intelligent control. With IP65 waterproof grade and strong temperature resistance, it can keep steady lighting for 6-8 rainy days continuously.
We also support SKD disassembly packing, including separate packing of lamp body, solar panel, battery, controller, LED light source and light pole accessories.
Key Features
High Efficiency MPPT Intelligent Control System
Built-in advanced MPPT charge controller boosts charging efficiency by 40%-50% compared with ordinary PWM controllers. It supports three intelligent working modes: light control, time control and microwave sensor induction, realizing automatic on/off and energy-saving dimming to fit various outdoor usage demands.
23% High Conversion Monocrystalline Silicon Solar Panel
Featured high photoelectric conversion rate up to 23%, the monocrystalline silicon panel realizes rapid solar energy absorption and fast power replenishment even in weak sunlight environment, ensuring sufficient power storage for long night working.
Philips LED Chip with Super High Luminous Output
Adopts original Philips 3030 LED chips, delivering uniform and wide light distribution. The maximum luminous flux reaches 16310lm, providing stable high brightness and longer service life, fully meeting standard road lighting requirements.
Product Specifications
|
Specifications |
30W |
40W |
50W |
60W |
100W |
120W |
140W |
160W |
|
Light Source |
Philips 3030/100PCS |
Philips 3030/100PCS |
Philips 3030/150PCS |
Philips 3030/150PCS |
Philips 3030/200PCS |
Philips 3030/250PCS |
Philips 3030/300PCS |
Philips 3030/300PCS |
|
Solar Panel |
18V 36W High-efficiency 23% Monocrystalline Silicon |
18V 36W High-efficiency 23% Monocrystalline Silicon |
18V 48W High-efficiency 23% Monocrystalline Silicon |
18V 48W High-efficiency 23% Monocrystalline Silicon |
18V 60W High-efficiency 23% Monocrystalline Silicon |
18V 72W High-efficiency 23% Monocrystalline Silicon |
18V 110W High-efficiency 23% Monocrystalline Silicon |
18V 110W High-efficiency 23% Monocrystalline Silicon |
|
Battery Type |
12.8V 15Ah LiFePO4 |
12.8V 30Ah LiFePO4 |
12.8V 30Ah LiFePO4 |
12.8V 30Ah LiFePO4 |
12.8V 45Ah LiFePO4 |
12.8V 45Ah LiFePO4 |
12.8V 60Ah LiFePO4 |
12.8V 60Ah LiFePO4 |
|
Luminous Flux |
2900-3150lm |
3980-4150lm |
4850-5150lm |
5880-6050lm |
9890-10250lm |
11000-12310lm |
13490-14310lm |
15000-16310lm |
|
Recommended Mounting Height |
5-6m |
6-7m |
6-7m |
7-8m |
8-10m |
9-10m |
10-12m |
12-15m |
|
Rainy Day Working Time |
6-8 Days |
6-8 Days |
6-8 Days |
6-8 Days |
6-8 Days |
6-8 Days |
6-8 Days |
6-8 Days |
|
Standard Charging Time |
≥7H |
≥7H |
≥7H |
≥7H |
≥7H |
≥7H |
≥7H |
≥7H |
|
Operating Temperature Range |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
|
Certification & Protection Grade |
CE, ROHS, IP65 |
CE, ROHS, IP65 |
CE, ROHS, IP65 |
CE, ROHS, IP65 |
CE, ROHS, IP65 |
CE, ROHS, IP65 |
CE, ROHS, IP65 |
CE, ROHS, IP65 |
|
Controller Working Mode |
Light Control, PIR Sensor, Time Control |
Light Control, PIR Sensor, Time Control |
Light Control, PIR Sensor, Time Control |
Light Control, PIR Sensor, Time Control |
Light Control, PIR Sensor, Time Control |
Light Control, PIR Sensor, Time Control |
Light Control, PIR Sensor, Time Control |
Light Control, PIR Sensor, Time Control |
|
Net Weight |
11.8KG |
15KG |
16KG |
20.5KG |
26KG |
33KG |
36KG |
40KG |
|
Standard Packing Quantity |
2PCS |
2PCS |
2PCS |
2PCS |
2PCS |
2PCS |
2PCS |
2PCS |
Certifications

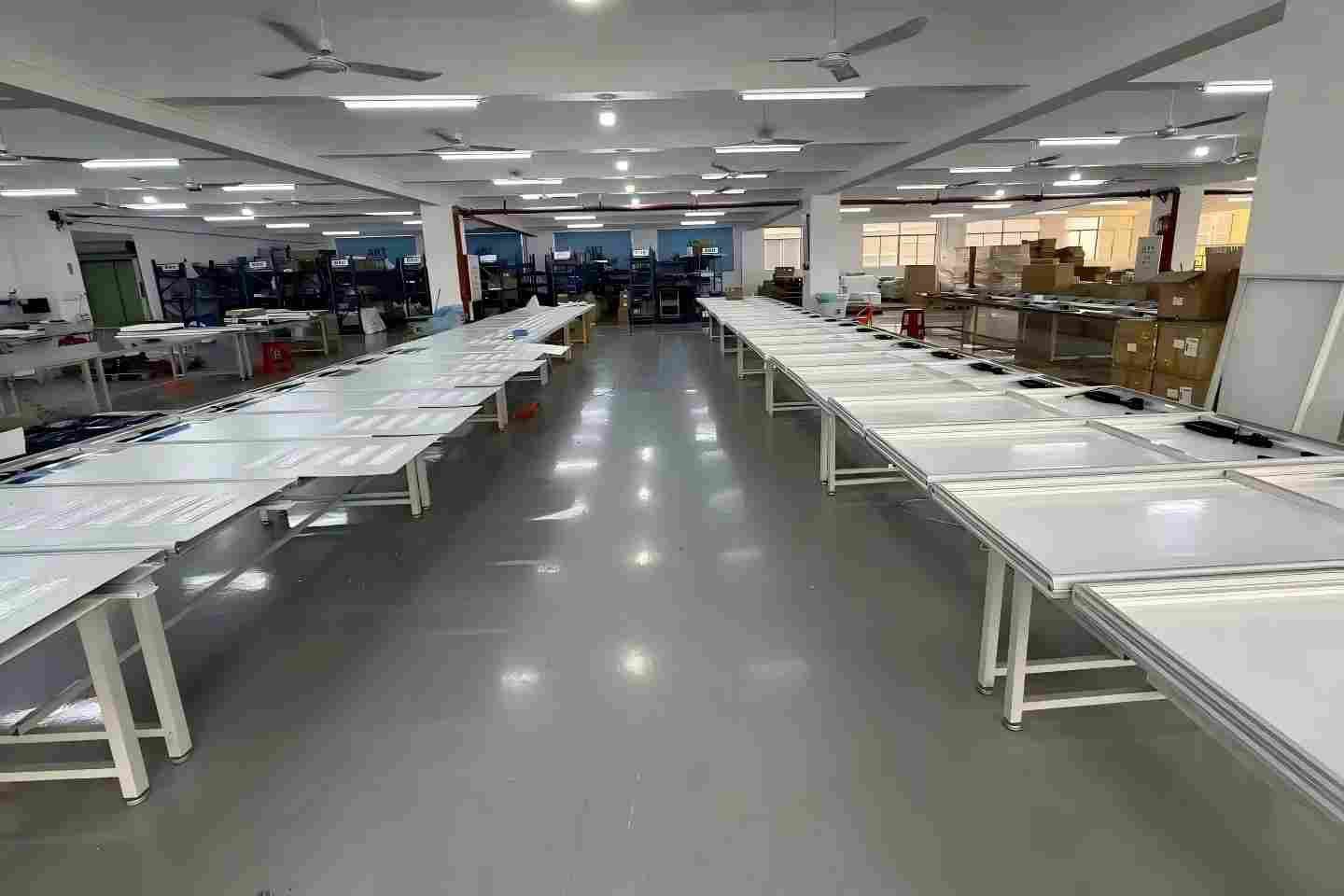

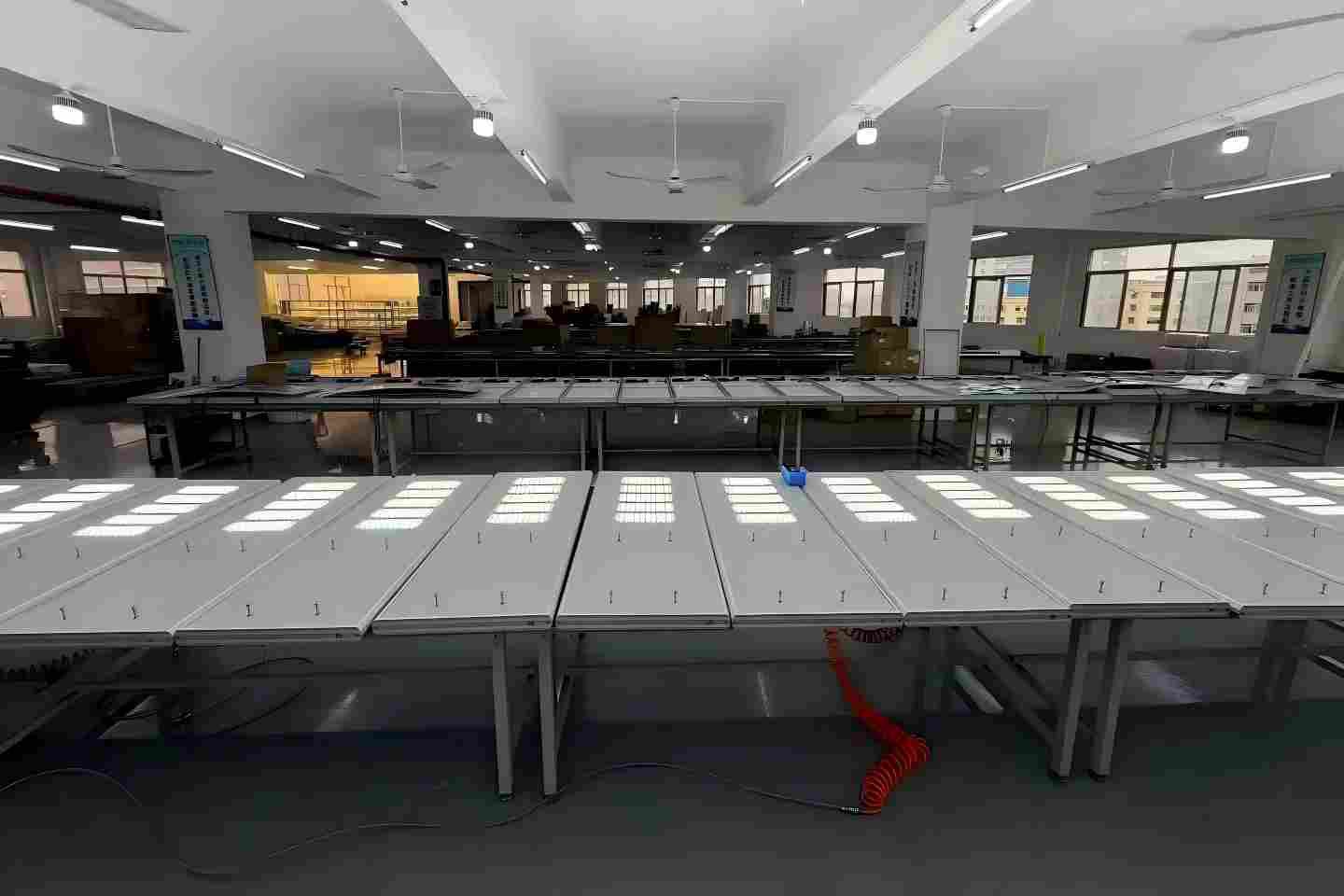

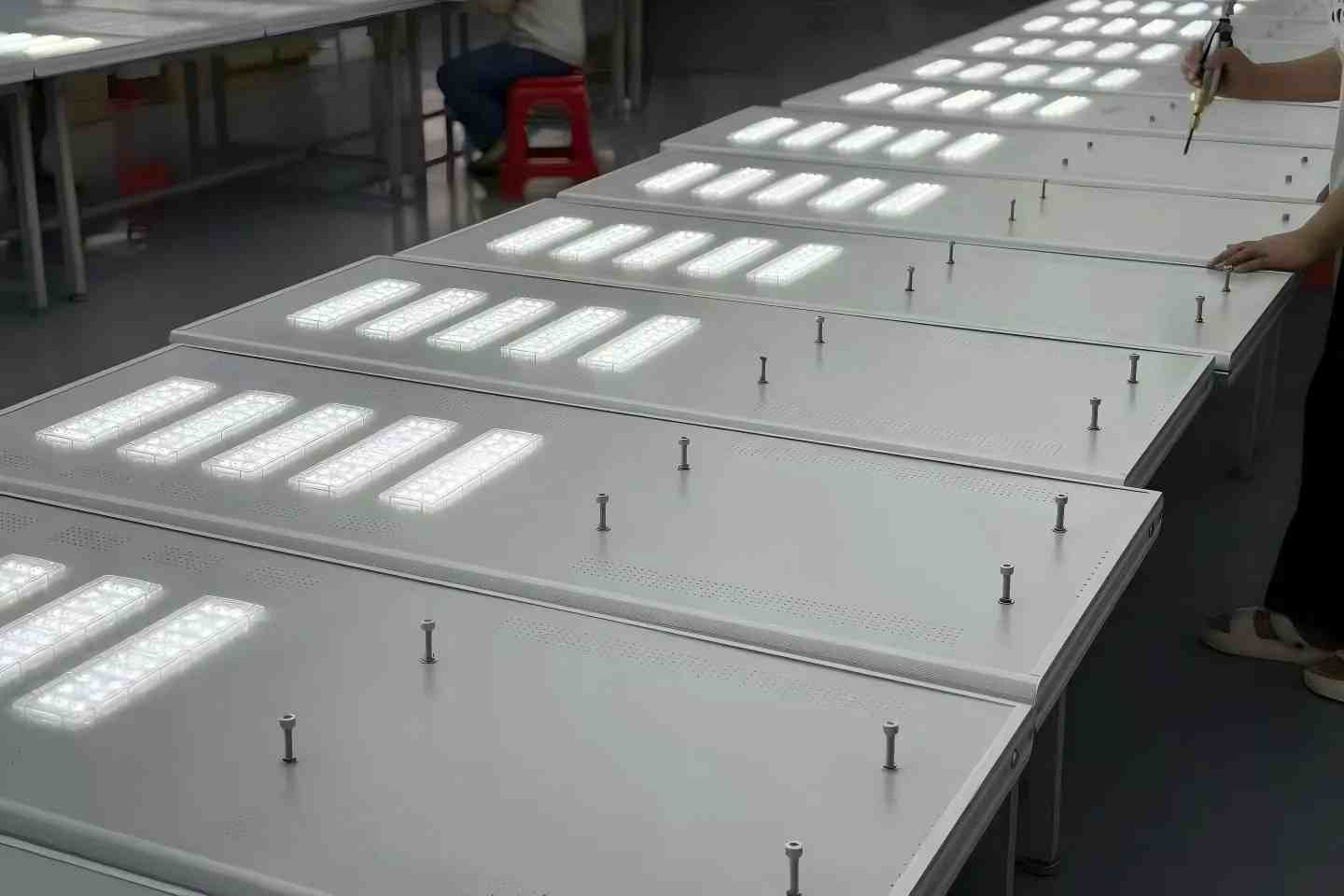

Factory Overview
