Commercial LED Street Light
Luminous Efficacy：130lm/W
CCT：2800-3000K; 3000-3200K; 4000-4500K; 5000-5500K; 6000-6500K
LED：San'an/Lumileds 3030
CRI：≥80Ra
PF：>0.97
Input Voltage：AC100-277V(Normal); AC100-305V(Meanwell)
THD：THD<15%
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Within those world well-known LED Street Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big commercial led street light project ongoing. With products for sale, you can wholesale LED Street Light of good design at low cost and low price from our factory.
Product Overview

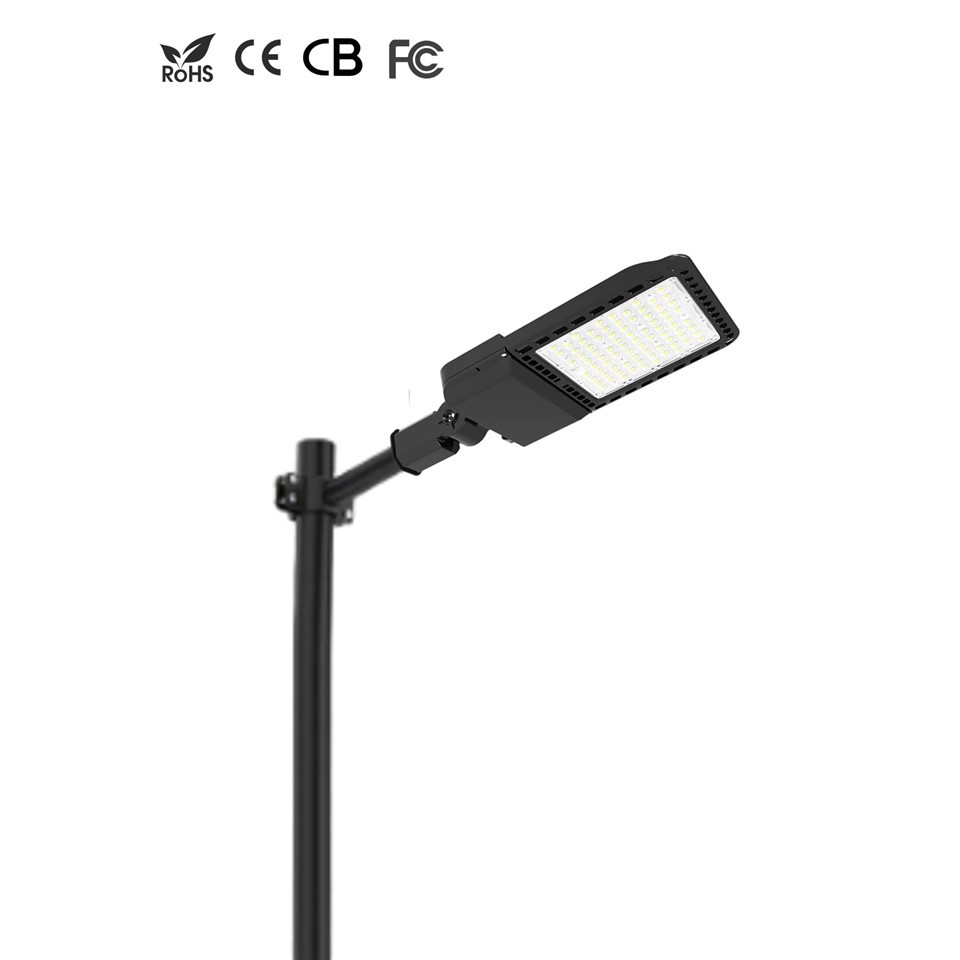

Commercial LED Street Light
This commercial LED street light with AC100-277V wide voltage, IP66 waterproof, IK08 impact resistance, 6KV surge protection and -30℃~60℃ wide working temperature, perfectly fits municipal road projects in Southeast Asia, Middle East, Africa, South America, North America, Europe and Australia. It adapts to unstable local grid, high temperature, humid, rainy and dusty environments, fully meeting global government and urban road lighting tender standards.
Parameters
|
Power |
100W |
150W |
200W |
240W |
300W |
|
Lumen |
13000lm |
19500lm |
26000lm |
31200lm |
39000lm |
|
Luminous Efficacy |
130lm/W |
||||
|
CCT |
2800-3000K; 3000-3200K; 4000-4500K; 5000-5500K; 6000-6500K |
||||
|
LED |
San'an/Lumileds 3030 |
||||
|
CRI |
≥80Ra |
||||
|
PF |
>0.97 |
||||
|
Input Voltage |
AC100-277V(Normal); AC100-305V(Meanwell) |
||||
|
THD |
THD<15% |
||||
|
Weight(kg) |
3.4 |
4.0 |
4.4 |
4.6 |
6.4 |
|
Sizes(mm) |
519*210*70 |
565*250*70 |
589*280*75 |
589*280*75 |
674*300*80 |
|
Beam Angle |
T3/T4 |
||||
|
Installation Hole(mm) |
Ø65 |
||||
|
Work Temp |
-30~60℃ |
||||
|
LED Junction Temp |
≤80℃ |
||||
|
Humidity |
15%~90% RH, no condensing |
||||
|
Finish |
Sprayed with outdoor special powder |
||||
|
Life span |
≥50,000 Hrs (LM70 @ 35℃ ) |
||||
|
Anti-surge rating |
6KV |
||||
|
IP Grade |
IP66 |
||||
|
IK Grade |
IK08 |
||||
|
Product Material |
|||||
|
Power Wire |
Body material |
Electronic safety grade |
|||
|
Rubber cable(3*1mm²) L=0.5m |
Aluminum housing + Glass + PC |
Class I |
|||
Certifications

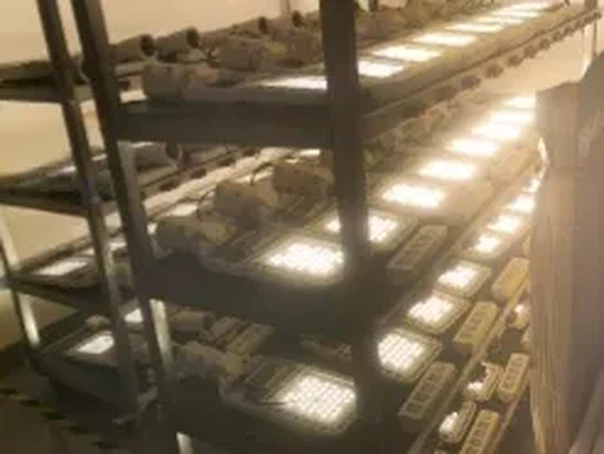

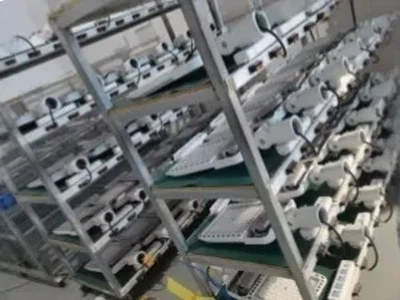

factory overview
contact us
📩 Send us your inquiry for MOQ and other details of this commercial LED street light within 24 hours.
