IP66 DOB LED Flood Light

Power Type：DOB Narrow Voltage
Input Voltage (V)：185V–265V
Driver Brand：Xinyuanchuang
LED Chip Brand：Zhaochi
Power Factor (PF)：0.5
LED Quantity (pcs)：42
System Luminous Efficacy (lm/W)：110

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Within those world well-known LED Flood Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big ip66 dob led flood light project ongoing. With products for sale, you can wholesale LED Flood Light of good design at low cost and low price from our factory.

Product Overview

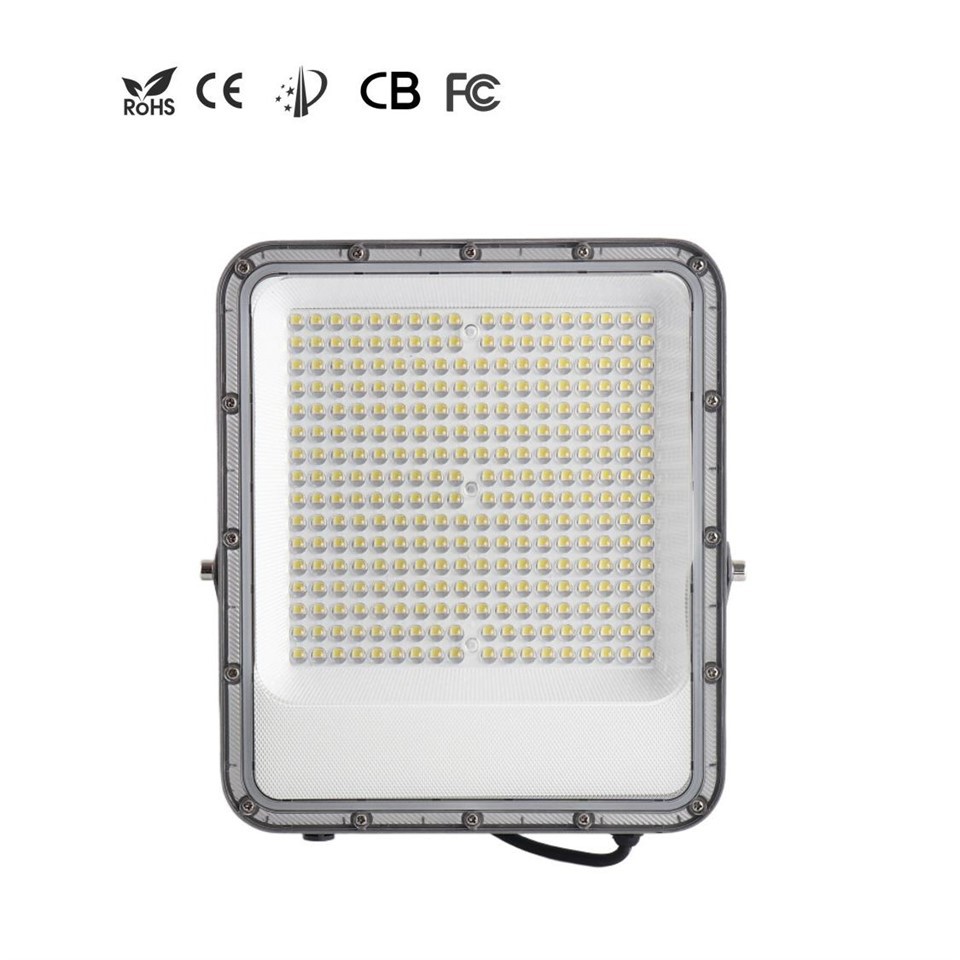

IP66 DOB LED Flood Light

This IP66 DOB LED Flood Light series is designed to deliver a reliable and cost-effective outdoor lighting solution for a wide range of commercial and industrial applications. Featuring an integrated DOB (Driver-on-Board) design with narrow voltage input (185–265V), it simplifies the internal structure while maintaining stable performance under standard grid conditions.

With power options ranging from 30W to 300W, the series covers everything from small-area lighting to large-scale illumination needs such as warehouses, production facilities, and sports venues. The system efficacy of 110 lm/W ensures efficient energy usage, while high-quality Zhaochi LED chips provide consistent brightness and a long service life.

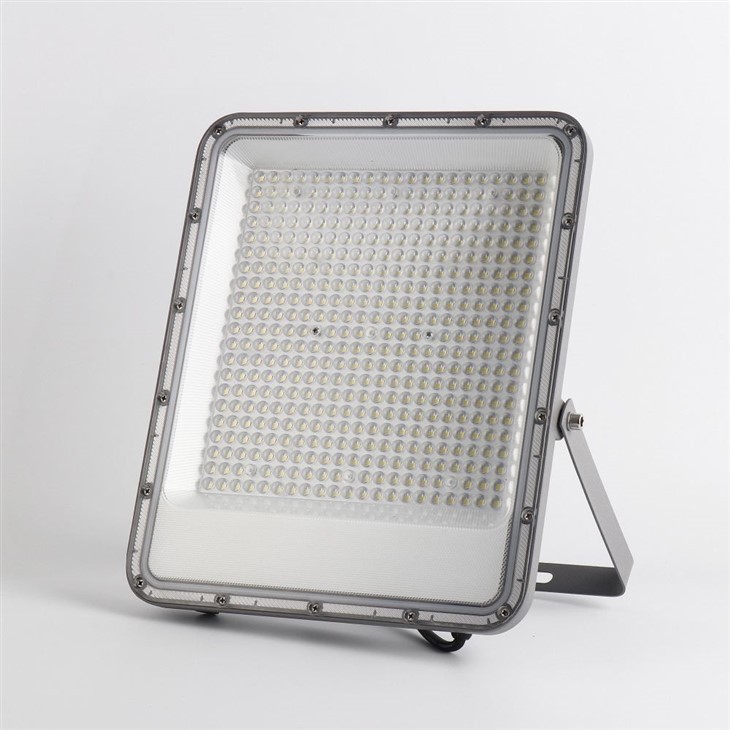

IP66 DOB LED Flood Light (2)

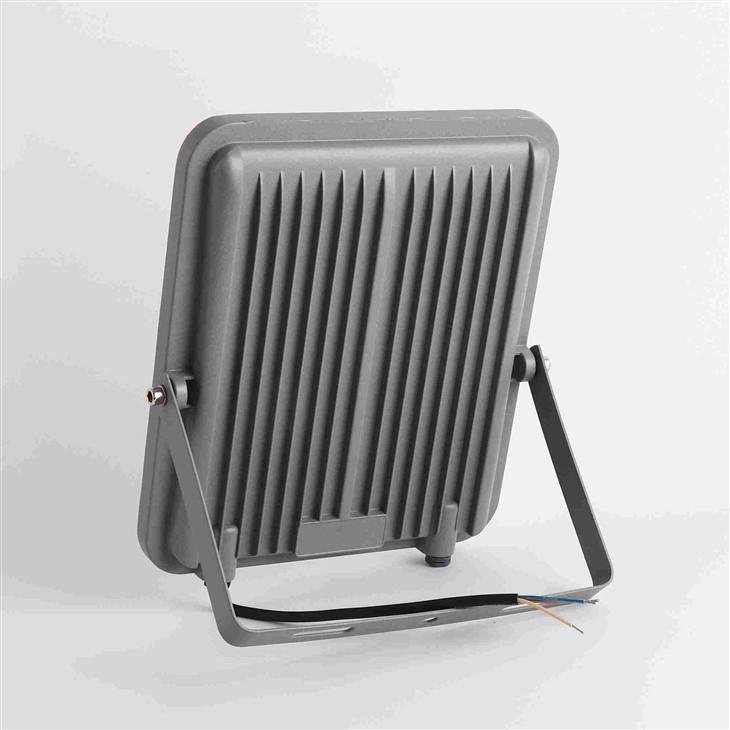

Built with die-cast aluminum housing and an IP66-rated structure, the floodlight is engineered to withstand outdoor environments, including rain, dust, and wind exposure. Combined with a 90° / 60° beam angle design, it offers flexible light distribution for both wide-area coverage and focused illumination.

This series balances performance, durability, and cost, making it an ideal choice for distributors and project contractors seeking dependable flood lighting solutions.

Key Advantages

1. Cost-Effective DOB Design for Large-Scale Projects

Integrated DOB (Driver-on-Board) structure with 185–265V narrow voltage input reduces component complexity and overall cost, making it an ideal choice for bulk procurement and price-sensitive projects.

2. High Brightness with Efficient Performance

Delivering up to 110 lm/W efficacy and 29,700 lumens output, this floodlight ensures strong illumination while maintaining energy efficiency across all wattage options (30W–300W).

3. Durable Outdoor Build for Reliable Operation

Featuring IP66 waterproof, IK08 impact resistance, and die-cast aluminum housing, the light is built to withstand harsh environments, ensuring stable performance in industrial and outdoor applications.

Products Specifications

Power (W)	30W	50W	100W	150W	200W	300W
Luminaire Class	Class I	Class I	Class I	Class I	Class I	Class I
Power Type	DOB Narrow Voltage	DOB Narrow Voltage	DOB Narrow Voltage	DOB Narrow Voltage	DOB Narrow Voltage	DOB Narrow Voltage
Input Voltage (V)	185V–265V	185V–265V	185V–265V	185V–265V	185V–265V	185V–265V
Driver Brand	Xinyuanchuang	Xinyuanchuang	Xinyuanchuang	Xinyuanchuang	Xinyuanchuang	Xinyuanchuang
LED Chip Brand	Zhaochi	Zhaochi	Zhaochi	Zhaochi	Zhaochi	Zhaochi
Power Factor (PF)	0.5	0.5	0.5	0.5	0.5	0.5
LED Quantity (pcs)	42	72	144	216	288	432
System Luminous Efficacy (lm/W)	110	110	110	110	110	110
System Luminous Flux (lm)	3105	5085	10012	14850	19800	29700
Beam Angle (°)	90°	90°	90°	90°	60°	60°
Color Rendering Index (CRI)	Ra≥80	Ra≥80	Ra≥80	Ra≥80	Ra≥80	Ra≥80
Color Temperature	6500K±500K	6500K±500K	6500K±500K	6500K±500K	6500K±500K	6500K±500K
Housing Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Housing Color	Speckled Grey	Speckled Grey	Speckled Grey	Speckled Grey	Speckled Grey	Speckled Grey
Lens Material	Optical PC	Optical PC	Optical PC	Optical PC	Optical PC	Optical PC
IP Rating	IP66	IP66	IP66	IP66	IP66	IP66
IK Rating	IK08	IK08	IK08	IK08	IK08	IK08
Mounting	Bracket Mount	Bracket Mount	Bracket Mount	Bracket Mount	Bracket Mount	Bracket Mount
Operating Temperature	-20℃ ~ +40℃	-20℃ ~ +40℃	-20℃ ~ +40℃	-20℃ ~ +40℃	-20℃ ~ +40℃	-20℃ ~ +40℃
Operating Humidity	10% – 90% RH	10% – 90% RH	10% – 90% RH	10% – 90% RH	10% – 90% RH	10% – 90% RH
Wind Resistance	Grade 12	Grade 12	Grade 12	Grade 12	Grade 12	Grade 12
Corrosion Resistance	WF1	WF1	WF1	WF1	WF1	WF1
Product Size (mm)	138×160×28	168×186×28	204×238×31	236×274×31	255×298×33	290×348×42
Inner Box Size (mm)	160×32×188	190×32×218	230×35×270	265×35×305	285×40×330	325×45×380
Qty per Carton	40 pcs	40 pcs	12 pcs	12 pcs	10 pcs	10 pcs
Outer Carton Size (cm)	35×33×39.5	35×39×45.5	45×24×29	45×27.5×32.5	43×29.5×35	48×33.5×40
Product Features	High efficiency, energy saving, long lifespan, high CRI, etc.
Applications	Industrial workshops, production plants, supermarkets, sports & entertainment venues, warehouses, etc.
Warranty	2 Years
