IP66 LED Flood Light
Input Voltage：AC85-265V 50/60Hz
System Luminous Efficacy：150lm/W
Driver：Standard / Zhihe / Songsheng
LED Chip：Osram 2835 / Philips 3030
Color Temperature：6000K (3000-6500K customizable)
CRI：Ra≥80
Power Factor：>0.92
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Within those world well-known LED Flood Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big ip66 led flood light project ongoing. With products for sale, you can wholesale LED Flood Light of good design at low cost and low price from our factory.
Product Overview

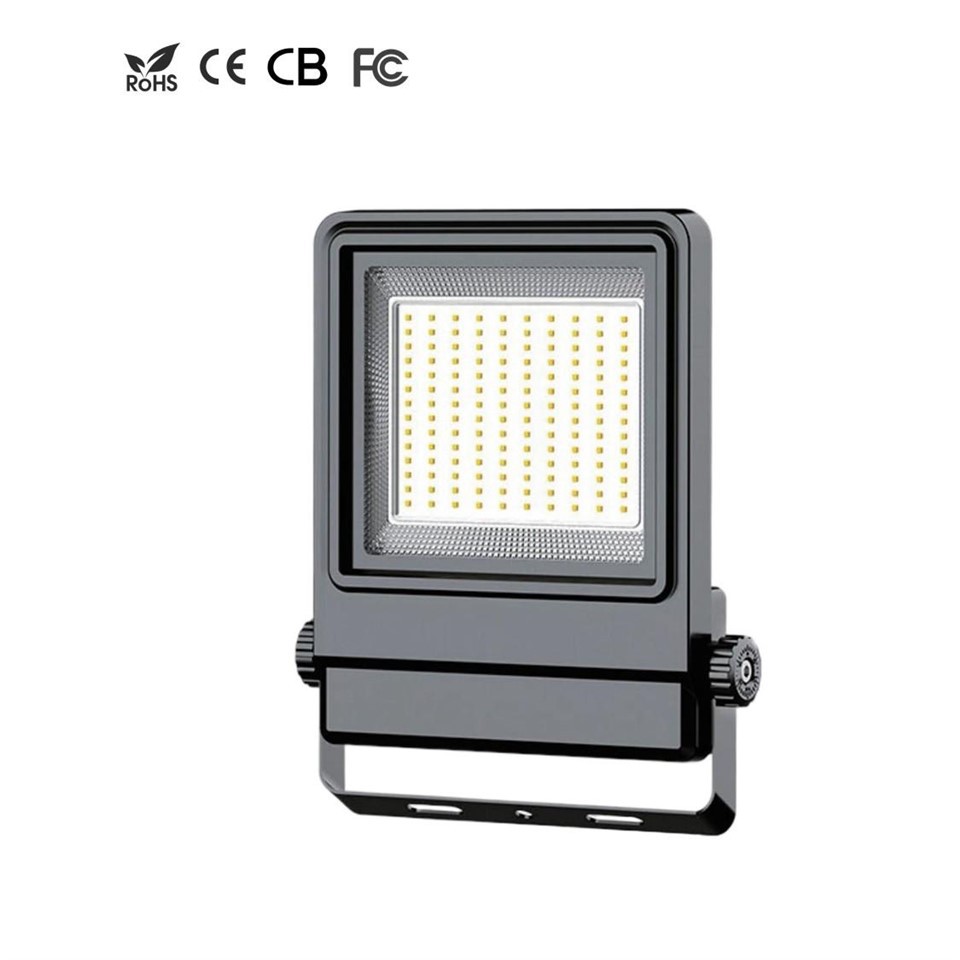

IP66 LED Flood Light
This IP66 LED Flood Light is designed for high-performance outdoor lighting, delivering up to 150 lm/W with premium LED chips for bright and energy-efficient illumination. Built with a die-cast aluminum housing and IK08 tempered glass, it ensures excellent heat dissipation and durability in harsh environments.
Applications:
Infrastructure Lighting: Tunnel lighting, underground parking lighting
Landscape & Public Area Lighting: Landscape lighting, park pathway lighting, parks, plazas
Commercial & Architectural Lighting: Commercial buildings, architectural lighting
Sports & Industrial Lighting: Sports fields, construction sites
Advantages

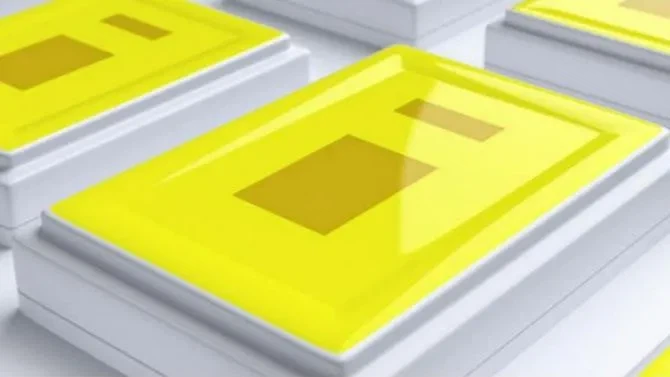

1. High-Efficiency Lighting with Premium LED Chips
Equipped with imported Lumileds / Osram / Philips LED chips, this flood light delivers up to 150 lm/W luminous efficacy with high brightness and low lumen depreciation.
It ensures stable performance and long-lasting illumination, making it ideal for large-area outdoor lighting projects.
2. Reliable Driver & Intelligent Control Options
Powered by international-brand drivers with high power factor (>0.92) and excellent conversion efficiency, the system features over-temperature protection and surge resistance.
Supports 1–10V dimming and DALI 2.0, enabling flexible smart lighting control for energy-saving applications.

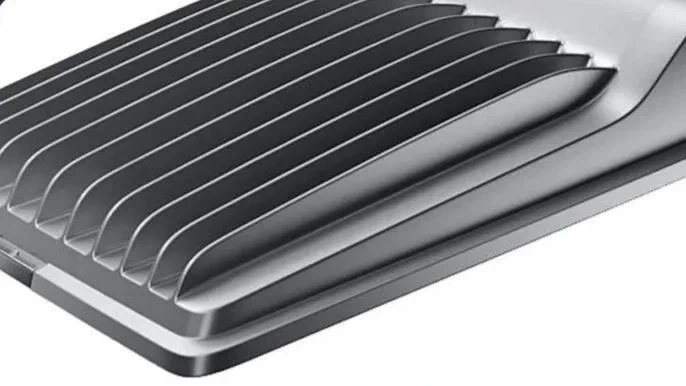

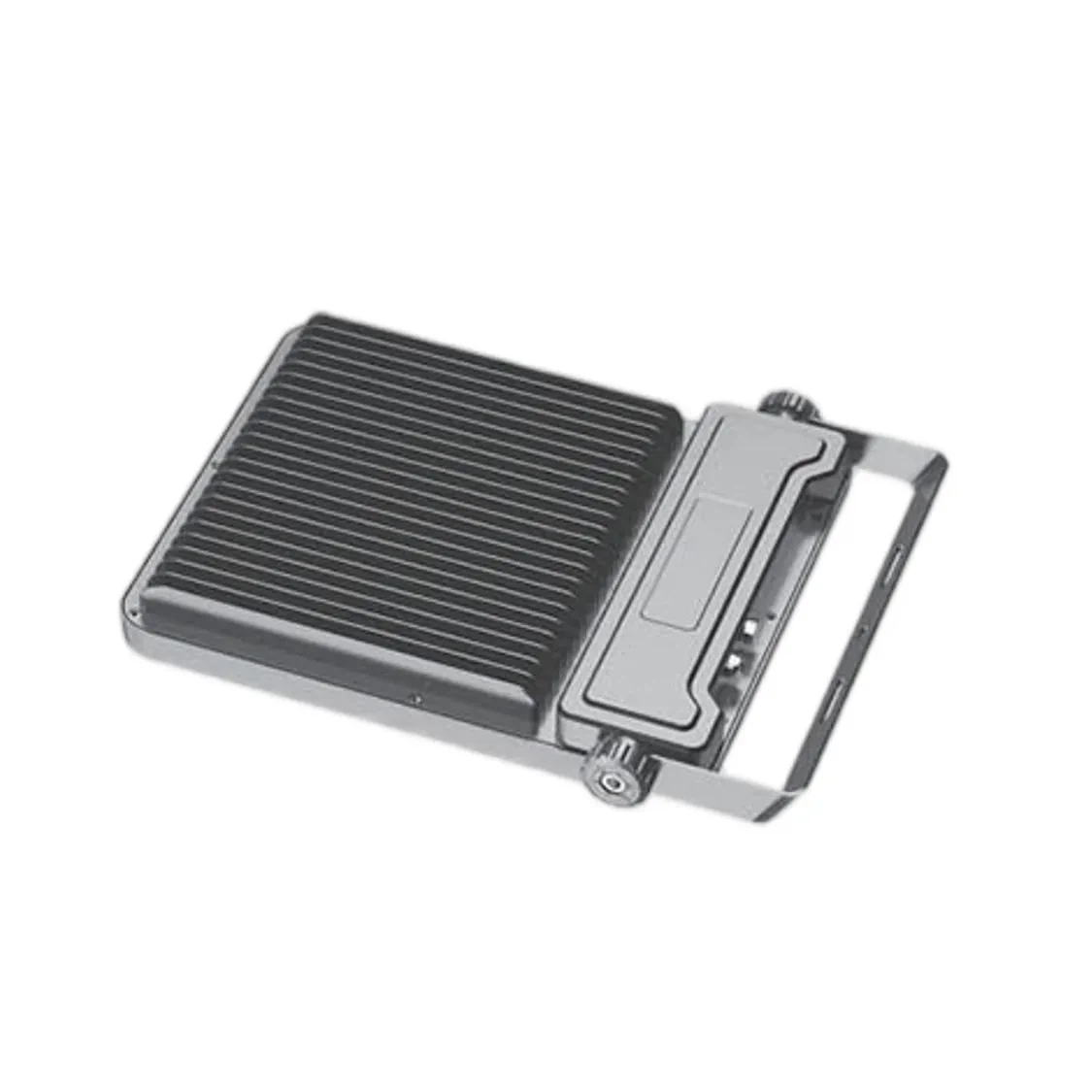

3. Superior Heat Dissipation & Durable Structure
Built with ADC12 die-cast aluminum housing for excellent thermal conductivity, combined with optimized heat dissipation design to reduce LED junction temperature and extend lifespan (up to 50,000h).

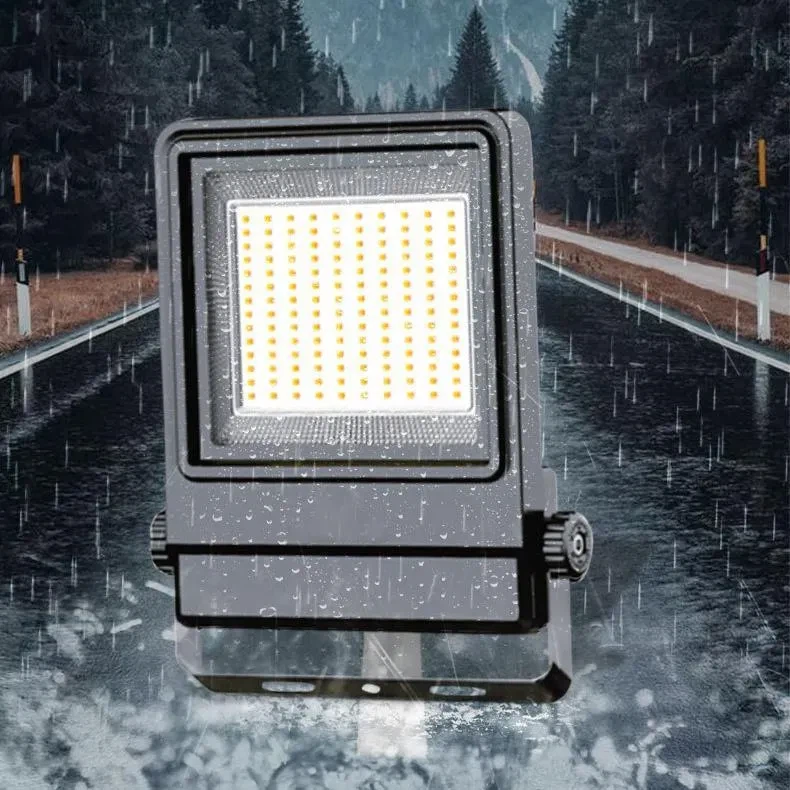

Featuring IP66 waterproof and IK08 impact-resistant 4mm tempered glass, it performs reliably in harsh outdoor environments.
Specifications
IP66 LED Flood Light
|
Power |
30W |
50W |
100W |
150W |
200W |
250W |
300W |
|
Luminous Flux |
4500lm |
7500lm |
15000lm |
22500lm |
30000lm |
37500lm |
45000lm |
|
Input Voltage |
AC85-265V 50/60Hz |
||||||
|
System Luminous Efficacy |
150lm/W |
||||||
|
Driver |
Standard / Zhihe / Songsheng |
||||||
|
LED Chip |
Osram 2835 / Philips 3030 |
||||||
|
Color Temperature |
6000K (3000-6500K customizable) |
||||||
|
CRI |
Ra≥80 |
||||||
|
Power Factor |
>0.92 |
||||||
|
Beam Angle |
120°; optional 25°, 45°, 60°, 90°, 70×150° |
||||||
|
Housing Material |
Die-cast Aluminum |
||||||
|
Ingress Protection |
IP66 |
||||||
|
Operating Temperature |
-25℃ ~ +50℃ |
||||||
|
Lifespan |
50000h |
||||||
|
Warranty |
6 Years |
||||||
certifications
Factory Overview
Contact us
📩 Send us your inquiry and receive a professional response of this IP66 LED Flood Light within 24 hours.
