150w Led High Bay Light With Radiator
Power:150 Watt
Lumen:18000 lumen
LED chips:3030 130lm/w
Protection grade: IP65, IK10
Input voltage: AC85~265V
CCT:3000k -6000k
5 warranty years
Working temperature:-30~65℃
Beam angle:60D 90D 120D
Packaging:L52W52H45/4pcs
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
150w Led High Bay Light With Radiator using constant current drive power, stable quality, no flicker, no ultraviolet rays, natural eye protection, and long life. Obtained national mandatory 3C certification, and international ISO quality system certification, Suitable for lighting fixtures in large and spacious places such as factories, power plants, steel mills, workshops, warehouses, stadiums, warehouses, petrol stations, shopping malls, airports, hypermarkets, etc.
Specifications of 150w Led High Bay Light With Radiator

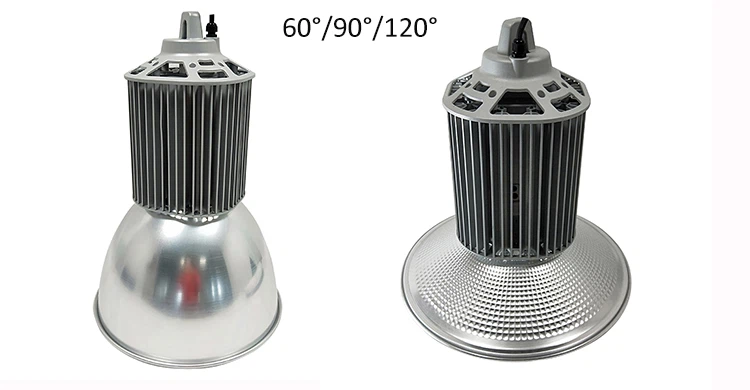

1. 60D 90D 120D aluminum reflectors to choose from, suitable for different places.
2. Shade swivel buckle, tool-free installation.
3. Simple installation, easy disassembly, wide application range.
4. Pure copper tube high thermal conductivity process, can reduce the temperature of the light source.
5. SMD3030, Single light efficiency 130lm/w, low light decay, low heat, and bright.
6. More than 50,000 hours of long service life, 5-year warranty.
7. Special surface treatment process, beautiful appearance, excellent decorative effect.
8. All-aluminum shell; five-year warranty, long life, and high light efficiency.
Parameters of 150w Led High Bay Light With Radiator
| Input voltage（V） | AC85-265V |
| HZ | 50/60Hz |
| （A） | 0.55A@ 220Vac |
| Power | ≥0.95 |
| Driver option | Meanwell driver/Isolated |
| Resistant to surges | 4KV |
| Total harmonic distortion | <20% |
| Odd harmonic limits | IEC 61000-3-2 Class C |
| Startup time | ≤0.5S（&230V） |
| Strobe | ＜8% |
| LED | SMD3030 |
| Brand | Lumileds Philips 3030 |
| Beam angle | 45°/120° |
| Color temperature | 3000K/4000K/5000K/6000K |
| RA | Ra80 |
| Color tolerance | ≤7 |
| IK Grade | IK10 |
| IP Grade | IP65 |
| Lm/W | 120-130Lm/W |
Installation

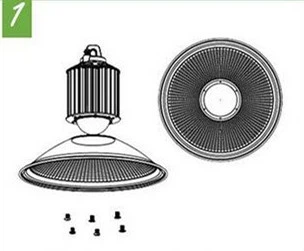

◆Assemble the screw and reflective cover |
◆Install the hook in advance and make sure not more than 30KG |
◆Put the light on the hook |
◆Put the cable in a safe position with a screw, then connect the interface of the light. Turn on the power, and check the light. |
Packing
About us
Yahua Lighting Co., Ltd. is committed to the R&D, production, and sales of LED high bay lights and LED products; focusing on the production of energy-saving and environmentally friendly high-power LED high bay lights. It has a complete range of specifications, and engineering and OEM special offers, and can be customized. There is more information about the latest professional product parameters, real-time quotations, market conditions, high-quality commodity wholesale, supply manufacturers, and other information related to led industrial and mining lamps. The product range is complete, the quality is guaranteed, and after-sales protection is provided. Our industrial and mining lamps are produced and sold by manufacturers. , Many varieties and excellent prices, professional technical support, and perfect after-sales service are trusted by customers!
Certification
