Automatic Integrated Solar Street Light
Solar Panel：23% mono silicon;25-year service life
Battery：LiFePO4 battery,12.8V 24Ah;5–8-year service life
LED Module：180pcs Philips 3030 LEDs;50,000+ hours lifespan
Luminous Efficacy：190~210 LM/W
Beam Angle：70~140°
Charging Time：6~8 hours under strong sunlight
Working Duration：12 hours per day
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Within those world well-known All In One Solar Street Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big automatic integrated solar street light project ongoing. With products for sale, you can wholesale All In One Solar Street Light of good design at low cost and low price from our factory.
Product Overview

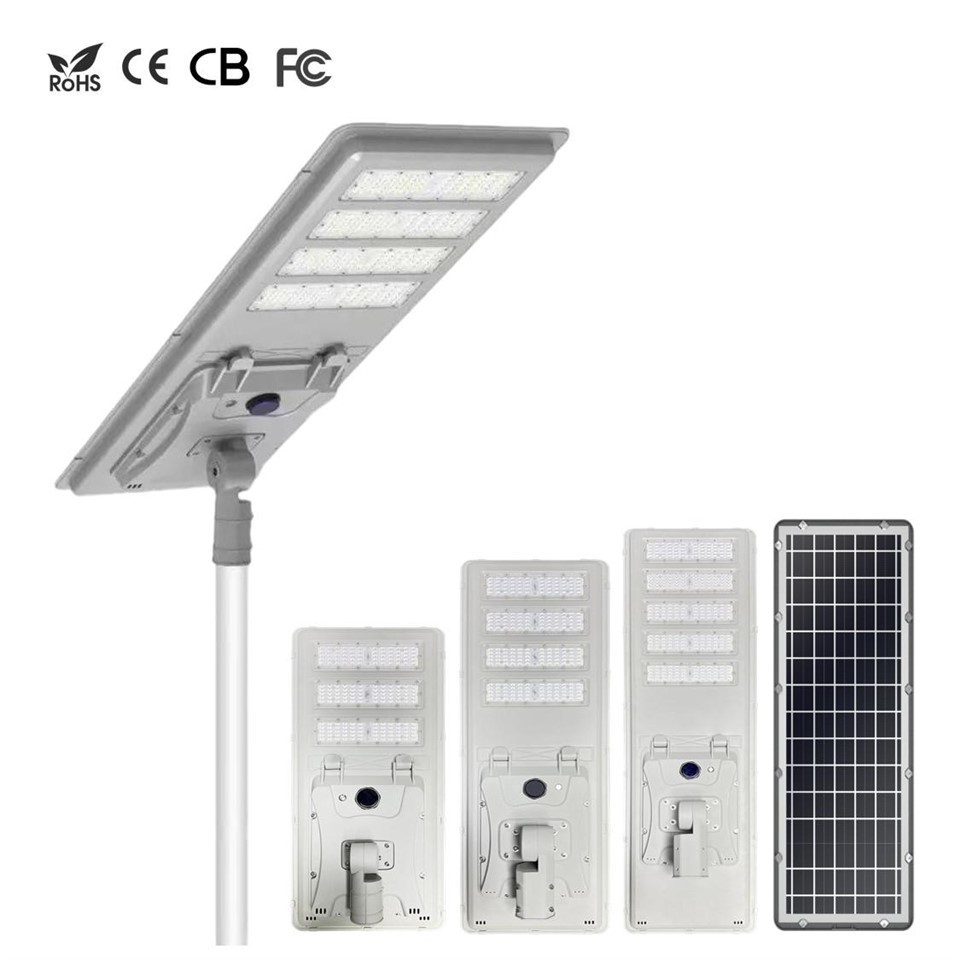

Automatic Integrated Solar Street Light
This Automatic Integrated Solar Street Light is an all-in-one off-grid solution, combining a high-efficiency monocrystalline solar panel, Philips 3030 LED module, Grade A LiFePO4 battery and advanced MPPT controller in a die-cast aluminum housing.
Advantages
Advantages of This Automatic Integrated Solar Street Light
1. Advanced MPPT Controller
Integrated with light control, time control and microwave induction. Its charging efficiency is 40%-50% higher than that of ordinary PWM controllers, maximizing solar energy utilization.
2. High-Efficiency Monocrystalline Silicon Solar Panel
Boasts an excellent photoelectric conversion rate of 23.8%, enabling fast charging even in weak light conditions, ensuring stable power supply.
3. Philips LED Chips
Features wide light distribution, delivering uniform illumination. The total luminous flux of the bulb can reach up to 24000LM, meeting high-brightness lighting needs.
Specifications
|
Item |
60W |
80W |
100W |
|
Solar Panel |
23% conversion rate mono silicon; 25-year service life |
23% conversion rate mono silicon; 25-year service life |
23% conversion rate mono silicon; 25-year service life |
|
Battery |
LiFePO4 battery, 12.8V 24Ah; 5–8-year service life |
LiFePO4 battery, 12.8V 30Ah; 5–8-year service life |
LiFePO4 battery, 12.8V 36Ah; 5–8-year service life |
|
LED Module |
180pcs Philips 3030 LEDs; 50,000+ hours lifespan |
240pcsPhilips 3030 LEDs; 50,000+ hours lifespan |
300pcs Philips LEDs; 50,000+ hours lifespan |
|
Luminous Efficacy |
190~210 LM/W |
190~210 LM/W |
190~210 LM/W |
|
Beam Angle |
70~140° |
70~140° |
70~140° |
|
Charging Time |
6~8 hours under strong sunlight |
6~8 hours under strong sunlight |
6~8 hours under strong sunlight |
|
Working Duration |
12 hours per day, works for 2–3 consecutive rainy days |
12 hours per day, works for 2–3 consecutive rainy days |
12 hours per day, works for 2–3 consecutive rainy days |
|
Recommended Mounting Height |
5–6m |
6–7m |
6–8m |
|
Main Material |
Die-cast aluminum |
Die-cast aluminum |
Die-cast aluminum |
|
Certifications |
CE / RoHS / IP65 / FCC |
CE / RoHS / IP65 / FCC |
CE / RoHS / IP65 / FCC |
|
Warranty |
3 years |
3 years |
3 years |
|
Product Dimensions |
887*400*280mm |
1160*400*280mm |
1435*400*280mm |
|
Package Dimensions |
1035*450*115mm |
1310*450*115mm |
1585*450*115mm |
|
Packing Method |
1 set/ctn |
1 set/ctn |
1 set/ctn |
|
Gross Weight |
12.6kg |
14.6kg |
17.3kg |
certifications

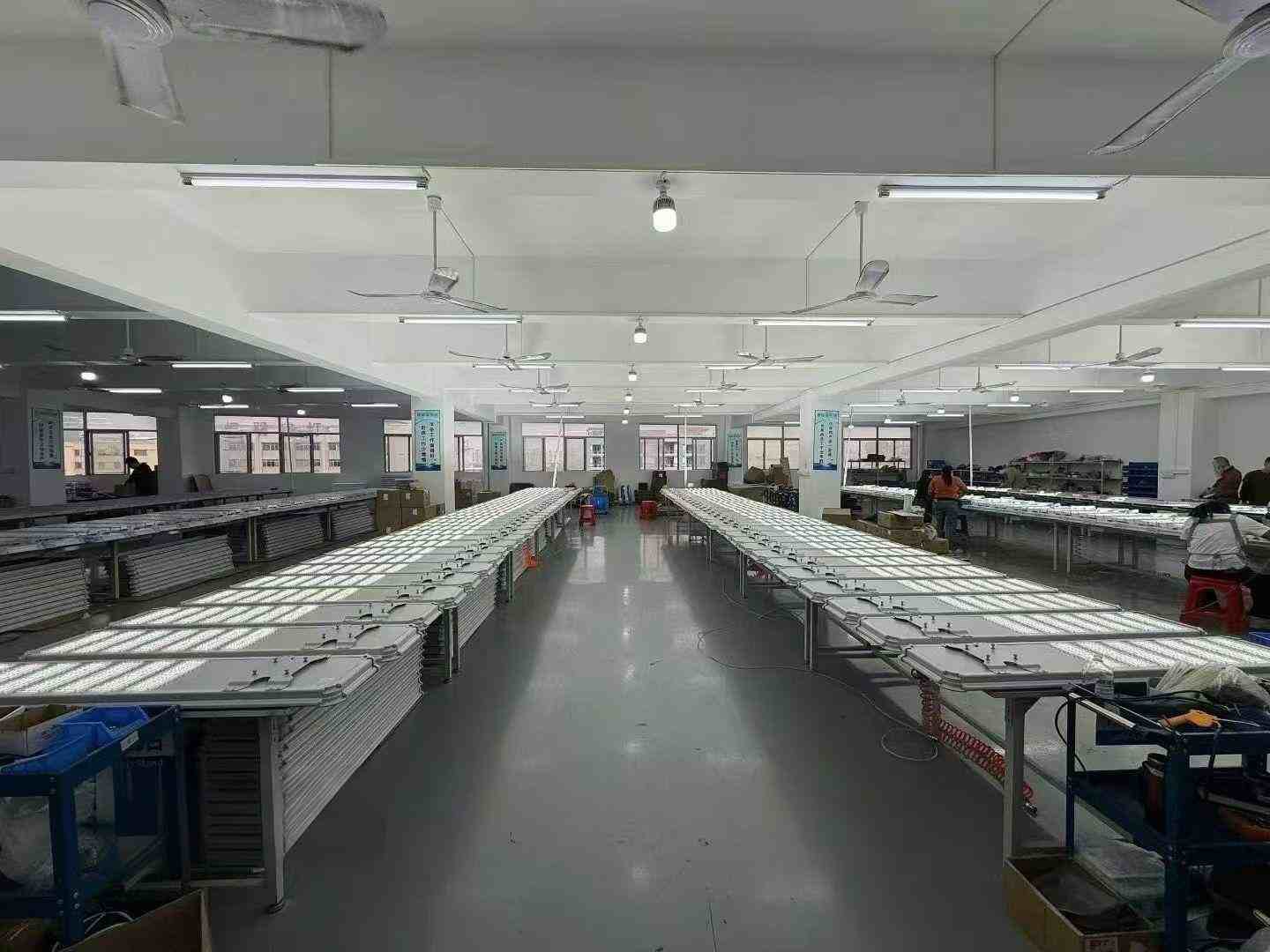

Factory Overview
Contact us
📩 Send us your inquiry and receive a professional response of this Automatic Integrated Solar Street Light within 24 hours.
Hot Tags: automatic integrated solar street light China, factory, manufacturers, supplier, wholesale, design, contractors, cost, price, project, for sale, 12v dc renewable solar street lamp design, all in one solar led street light, renewable energy solar led light, solar led lights for garden, solar powered led lights, solar yard lights design
