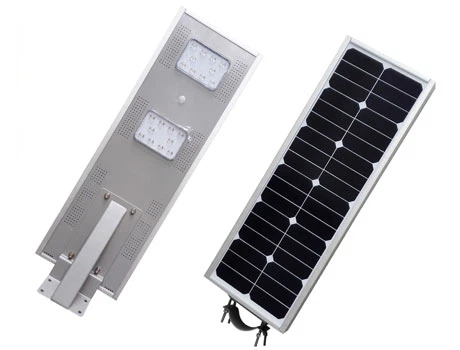

30W 40W all in one Solar street lamp
  • Integrated Solar Street Light For Home Garden
  • All in one solar street lamp manufacturers
  • All in one solar street lamp Yahua linghting
  • All in one solar street lamp factory

30W 40W all in one Solar street lamp

Material:Aluminum Alloy
Power:25W/30W/40W
Battery:12.8V 18Ah LiFepo4 Lithium battery
LED Chips Brand: Philips 3030 LED Chips for Luminaire Solar
Charge Time(By Sun)::6-7hours With Enough Strong Shine
Working Mode: Dusk to Dawn, Induction Sensor
LED Life Time:2200 cycle times
Warranty:3 Years
MOQ:1pc
Install Height:3-6M(Suggested)
Product Size:960*350*52mm, 1200*340*52mm, 1200*340*42mm
Certification:ISO9001, CE, ROHS, IP65
Delivery Time:5 days

Product Details


Production Introduction


Our all-in-one solar street lamp uses Long lifetime LifePO4 battery. 2200 cycle times.

All in One Integrated Solar Street Panel Light with LiFepo4 battery For road parks, and gardens has a high-efficiency Mono solar panel, automatic smart controller, and durable Li-battery all in one lamp. NO need for any wire and is easy to install in one solar street light.


Production Details


1. LED light, solar panel, lithium battery, and controller,all in one compact design.

2. No wiring,100% solar powered, easy to install and ship.

3. Light control+Induction Sensor+Motion sensor.

4. Philips High-Efficiency LED Chip, Aluminium alloy housing.

5. Rust-proof, dustproof and waterproof IP65.

6. There are different types to suit your needs. Application for road, public area lighting, garden, residential, etc.


1


Light source

25W

30W

40W

Solar panel

DC18V 50W

DC18V 45W

DC18V 50W

Battery

12.8V 18Ah LiFepo4 Lithium battery

12.8V 22Ah LiFepo4 Lithium battery

12.8V 24Ah LiFepo4 Lithium battery

Charging time

6Hours

6Hours

6Hours

Working time

Full power: 12Hours

Saving mode:>20hours

Full power: 12Hours

Saving mode:>20hours

Full power: 12Hours

Saving mode:>20hours

Dimension

960*350*52mm

1200*340*52mm

1200*340*42mm

Net weight

11kgs

17kgs

18kgs

Mounting height

3-4m

4-5m

5-6m

Color Temperature

-30~+60

-30~+60

-30~+60

Beam angle

140°

140°

140°

Certificate

CE ROHS IP65

CE ROHS IP65

CE ROHS IP65

Warranty

3 Years

3 Years

3 Years

solar street light 40Wsolar led lights outdoor (3).jpg

solar all In one led light

solar light install


1


Production Case


outdoor solar led lighting

1


FAQ


Q: Can I have a sample order for solar street light?

A: Yes, we welcome sample orders to test and check quality. you can order one piece sample to test, Mixed samples are acceptable.



Q: How long the solar power can be stored?

A: Solar power of the all-in-one solar street light can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after a long time of transportation to prevent damage.



Q: How many cycles of full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled 1,200 times; in floating charging and discharging status, it can be cycled 5000~6000 times.



Q: How to control the luminance of the solar street light?

A: Our solar street light adopts motion sensor control & brightness sub-regulation.  Use remote control to set the brightness according to the time change.



Q: What is the mounting height?

A: We suggest the solar street light of 20W, 30W, and 40W for 3-5m, the solar street light of 50W, 60W, and 80W for 6-8m.



Q: Is it OK to print my logo on the led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Do you offer a guarantee for the products?

A: Yes, we offer 3 years warranty on our products including all parts.
