25W–300W IP66 LED Street Light
Beam Angle：4-in-One Lens: 60°/90°/120°/T2M/T3M/T4M
Color Rendering Index(CRI)：Ra>70
Power Supply Efficiency：>88%
LED Luminous Efficiency：120-130lm/w
Power Factor(PF)：>0.95
Total Harmonic Distortion(THD)：≤15%
IP Rank：IP 66
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Within those world well-known LED Street Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big 25w–300w ip66 led street light project ongoing. With products for sale, you can wholesale LED Street Light of good design at low cost and low price from our factory.
Product Overview

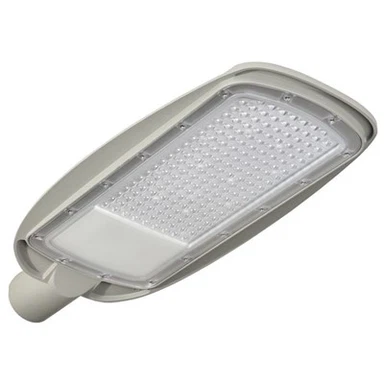

25W–300W IP66 LED Street Light
This 25W–300W IP66 LED Street Light is designed for reliable grid-powered outdoor lighting projects, offering a wide power range from 25W to 300W to meet different road and infrastructure requirements. Equipped with Lumileds 3030 LED chips, the fixture delivers stable brightness with a luminous efficacy of 120–130 lm/W.
The light supports AC100–240V input, making it suitable for global electrical standards. With an IP66 waterproof rating, multiple beam angles, and optional color temperatures, it can be widely used for urban streets, highways, parking areas, industrial zones, and municipal lighting projects.
Key Advantages
Wide Power Range for Various Road Lighting Applications
1. Available from 25W to 300W, this LED street light can be applied to residential streets, secondary roads, highways, parking lots, and industrial areas.
2. The flexible power options help contractors and project developers select the most suitable lighting solution for different installation heights and road widths.
Reliable Performance with High Efficiency LEDs
1. Using Lumileds 3030 LED chips, the fixture provides 120–130 lm/W luminous efficacy and stable light output.
2. Combined with >0.95 power factor, >88% driver efficiency, and IP66 protection, it ensures long-term performance in demanding outdoor environments.
Products Description
|
Power |
25W |
50W |
60W |
80W |
100W |
120W |
150W |
180W |
200W |
250W |
300W |
|
LED Quantity |
Lumileds 3030 96pcs |
Lumileds 3030 96pcs |
Lumileds 3030 96pcs |
Lumileds 3030 144pcs |
Lumileds 3030 144pcs |
Lumileds 3030 144pcs |
Lumileds 3030 192pcs |
Lumileds 3030 192pcs |
Lumileds 3030 256pcs |
Lumileds 3030 256pcs |
Lumileds 3030 384pcs |
|
Luminous Flux |
3600±10% |
6500±10% |
7200±10% |
10800±10% |
13000±10% |
14400±10% |
18750±10% |
21600±10% |
26000±10% |
30000±10% |
39000±10% |
|
LED Type |
Lumileds 3030 |
||||||||||
|
Voltage |
AC100V-240V 50/60HZ |
||||||||||
|
Color Temperature |
Warm White: 3000-4000K |
||||||||||
|
Neutral White: 4000-5000K |
|||||||||||
|
Cool White: 5000-6000K |
|||||||||||
|
Beam Angle |
4-in-One Lens: 60°/90°/120°/T2M/T3M/T4M |
||||||||||
|
Color Rendering Index(CRI) |
Ra>70 |
||||||||||
|
Power Supply Efficiency |
>88% |
||||||||||
|
LED Luminous Efficiency |
120-130lm/w |
||||||||||
|
Power Factor(PF) |
>0.95 |
||||||||||
|
Total Harmonic Distortion(THD) |
≤15% |
||||||||||
|
IP Rank |
IP 66 |
||||||||||
|
Lamp Size |
568*200*109mm |
568*200*109mm |
568*200*109mm |
613*240*109mm |
613*240*109mm |
613*240*109mm |
683*260* 109mm |
683*260* 109mm |
693*300* 109mm |
693*300* 109mm |
793*300* 109mm |
|
Net Weight |
4.0KG |
4.0KG |
4.0KG |
4.92KG |
4.92KG |
4.92KG |
5.86KG |
5.86KG |
6.47KG |
6.47KG |
7.7KG |
|
Certificate |
CE,CB,RoHS,FCC,SAA |
||||||||||
