200 watt LED Street Light IP66
1. Power: 50-300W
2. Luminous efficiency: 150LM/W
3. LED chips: Philips3030
4. IP rating: IP66
5. CRI: ＞80
6. Material: PC+Die-cast Aluminum
7. Warranty: 5 years
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
IP66 LED Street Light Outdoor
Engineered for durability and high performance, the YHZ-TED series offers 50W to 300W power options with an impressive 150 lm/W luminous efficacy. Featuring Philips LED chips, CRI >80, and customizable 5500K color temperature, these lights deliver bright, natural illumination for streets, parking lots, and industrial areas.
The IP66-rated die-cast aluminum housing ensures excellent weather resistance, while a 50,000+ hour lifespan and 5-year warranty provide long-term reliability.
Features of IP66 LED Street Light Outdoor
-
High Brightness & Stability: Equipped with Philips SMD3030 LEDs for high lumen output, low light decay, and long-lasting performance.
-
Reliable Power Supply: Constant voltage/current driver with protection against overheating, over-voltage, short-circuit, lightning, and surge (6KV).
-
Optical Excellence: High-sealing PC lens with high transmittance, glare reduction, waterproof, anti-mosquito design, and optional beam angles.
-
Efficient Heat Dissipation: Thickened heat sink with integrated convection cooling ensures stable operation and extended lifespan.
-
Durable Build: Die-cast aluminum housing with oxidation treatment and stainless-steel screws for anti-corrosion and long-term durability.
-
Easy Installation: Flexible mounting design with adjustable lighting angle for diverse applications.
Specification
|
Model |
YHZ-TED-50W |
YHZ-TED-100W |
YHZ-TED-150W |
YHZ-TED-200W |
YHZ-TED-300W |
|
Power |
50W |
100W |
150W |
200W |
300W |
|
Luminous Efficacy |
150 lm/W |
150 lm/W |
150 lm/W |
150 lm/W |
150 lm/W |
|
CT |
5500K(Customizable) |
5500K(Customizable) |
5500K(Customizable) |
5500K(Customizable) |
5500K(Customizable) |
|
Voltage |
Input: 100-277V AC; Output: 24-54V DC,50/60Hz |
Input: 100-277V AC; Output: 24-54V DC,50/60Hz |
Input: 100-277V AC; Output: 24-54V DC,50/60Hz |
Input: 100-277V AC; Output: 24-54V DC,50/60Hz |
Input: 100-277V AC; Output: 24-54V DC,50/60Hz |
|
CRI |
＞80 |
＞80 |
＞80 |
＞80 |
＞80 |
|
LED Light Source |
Philips 64pcs 8B8C |
Philips 112pcs 14B8C |
Philips 184pcs 23B8C |
Philips 216pcs 27B8C |
Philips 336pcs 42B8C |
|
IP Rating |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
|
Housing Material |
Die-Casting Aluminum |
Die-Casting Aluminum |
Die-Casting Aluminum |
Die-Casting Aluminum |
Die-Casting Aluminum |
|
Warranty |
5 Years |
||||
|
Lifespan |
50,000+hours |
||||
Application
● Application: This LED module street light can be used for tunnel lighting, sports field lighting, park lighting, and other outdoor lighting places

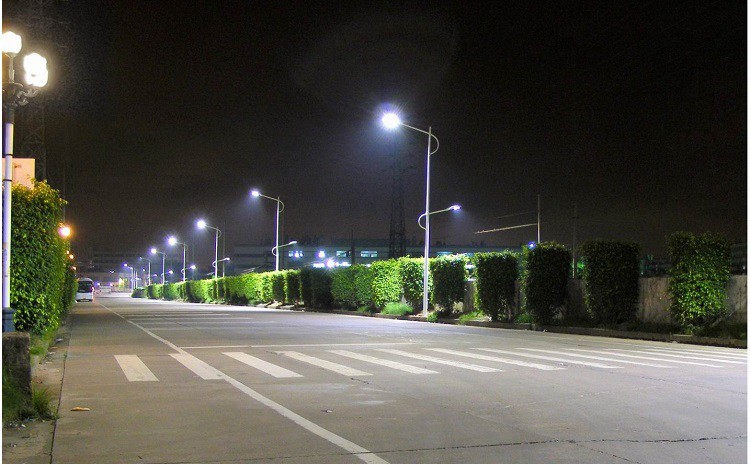

◆LED Street Light Installation Effect Diagram
Why choose Yahua outdoor LED lighting products?
Founded in 2001, Yahua Lighting is a high-tech enterprise specializing in solar and outdoor LED lighting. Our main products include solar street lights and advanced power generation systems, exported to over 100 countries and trusted by global dealers.
With professional teams, dedicated facilities, and full customization capabilities, we deliver reliable, high-quality solutions backed by responsive service. Your inquiries are always welcome.
FAQ
Q1: Is this light only 200 watts?
A: We have another wattage, you can customize the wattage you need according to your needs.
Q2：What kind of lamps and lanterns do you have?
A： We have solar street lights, solar flood lights, solar garden lights, solar lawn lights, LED street lights, LED high pole lights, LED mining lights, LED tunnel lights, LED flood lights, LED court lights, etc.
Q3：Do you have any certification for your products? We have the following certifications
A: Our products have passed ISO9001, CCC, CE, ROHS, and other certifications.
