Integrated Solar Street Light With Camera
1. Luminous Flux:4500lm-12000lm
2. LED Chip:SMD5050
3. Lamp Body Material:Die-castingaluminium
4. Lens Material:Teijin PC
5. Radar Sensor:YES
6. Product Features:Optical+Remote Control
7. IP Rank:IP65
8. Certifications:CE, RoHS, FCC, CB
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Within those world well-known Solar Street Light manufacturers and contractors in China, YAHUA is a reliable supplier having a big integrated solar street light with camera project ongoing. With products for sale, you can wholesale Solar Street Light of good design at low cost and low price from our factory.
Product Overview
Integrated Solar Street Light With Camera
This Integrated Solar Street Light With Camera is an integrated solution combining road lighting, video surveillance, solar power supply, and smart IoT control in a single compact system.
Designed for road projects, rural electrification, industrial areas, and remote locations, the system adopts an ultra-low power monitoring architecture that significantly reduces energy consumption while ensuring 24/7 lighting and security monitoring, even under long rainy or cloudy conditions.
With high-efficiency LED optics, HD full-color camera, WiFi / 4G connectivity options, and a smart energy management system, the product delivers lower total system cost, easier installation, and long-term operational reliability, making it ideal for government projects, EPC contractors, and infrastructure developers.
Key Advantages

Optical Ultra-Low Power All-in-One Solar Street Light
1. Self-developed ultra-low power monitoring program, reducing power consumption by up to 60% compared with conventional systems.
2. Lower demand on solar panel and battery capacity, enabling a more compact system design.
3. Delivers 24/7 lighting and video surveillance with a smaller system configuration and better overall cost efficiency.
4. Stable operation even during rainy and cloudy days, ensuring true 365-day operation.

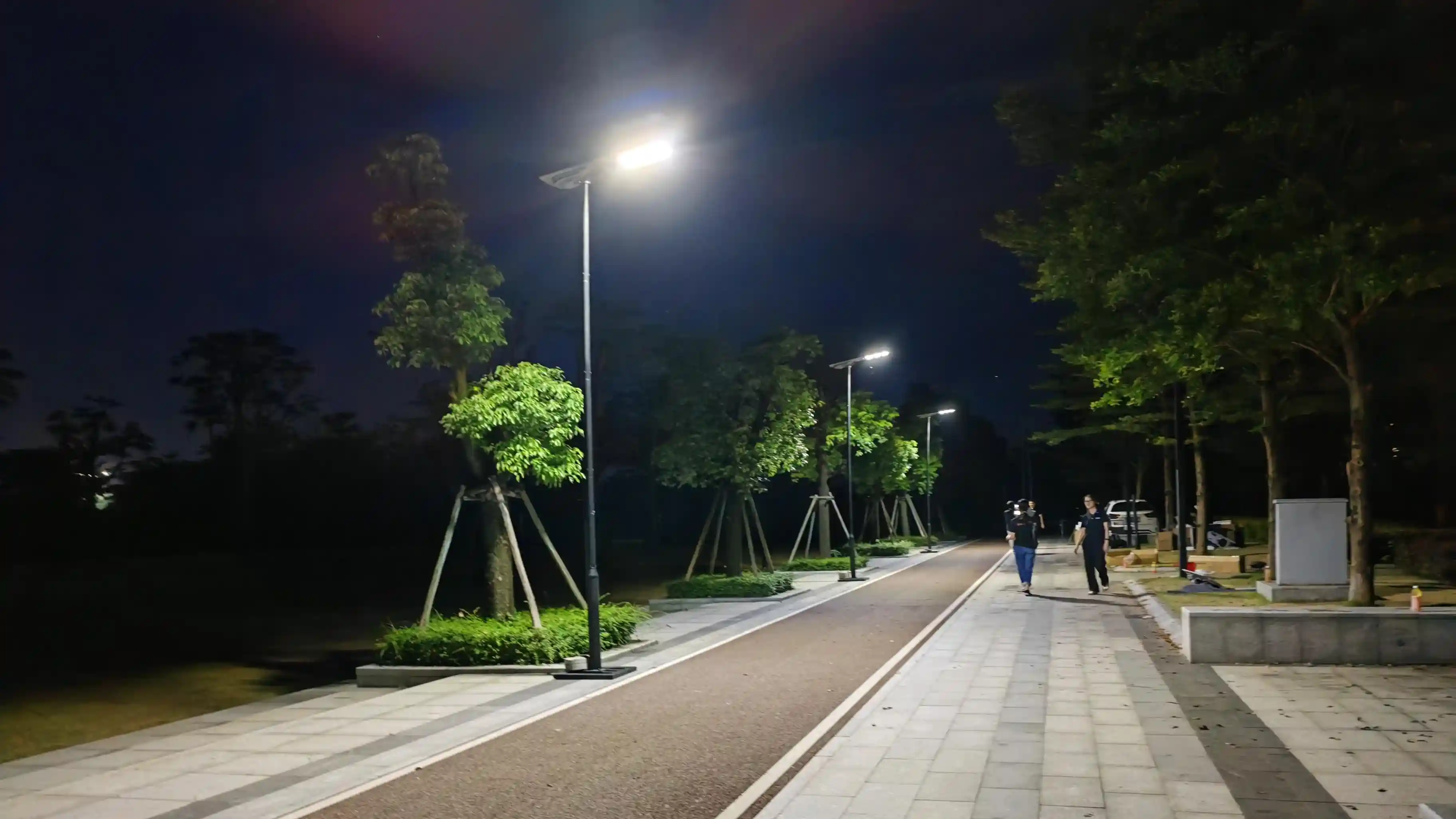

Engineered for Outdoor Projects & Flexible Deployment
1. WiFi / 4G dual connectivity options, suitable for urban, rural, and remote areas
2. Enhanced signal design with automatic reconnection, ensuring long-term online stability
3. Advanced optical lens system increases overall brightness by 30% and illumination coverage by 30%
4. MPPT-based fast charging solution improves charging efficiency by up to 50%
5. Smart power management system dynamically adapts to daily solar input, improving reliability during extended rainy periods
Specifications
With CCTV Camera
| Model | YHZ-SSO100C | YHZ-SSO200C | YHZ-SSO300C | YHZ-SSO400C | |
| Lamp Body Material | Die-casting aluminium |
Die-casting aluminium |
Die-casting aluminium |
Die-casting aluminium |
|
| Lens Material | Teijin PC | Teijin PC | Teijin PC | Teijin PC | |
| Lamp Size | 932*365*160mm | 1122*365*160mm | 1342*365*160mm | 1672*365*160mm | |
| LED Chip |
45 PCS |
90 PCS |
135 PCS |
180 PCS |
|
| Battery | LiFePO4 75Ah |
LiFePO4 85Ah |
LiFePO4 105Ah |
LiFePO4 170Ah |
|
| Solar Panel | 4V/60W (860*350mm) |
4 V/75W (1050*350mm) |
4 V/90W (1270*350mm) |
4 V/110W (1600*350mm) |
|
| CCT | 6500-7500K | 6500-7500K | 6500-7500K | 6500-7500K | |
| Charging Time | Effective sunshine 4-6H |
Effective sunshine 4-6H |
Effective sunshine 4-6H |
Effective sunshine 4-6H |
|
| Discharge Time | 3-5 rainy & cloudy days |
3-5 rainy & cloudy days |
3-5 rainy & cloudy days |
3-5 rainy & cloudy days |
|
| Discharge Current | 7.8A | 11A | 14A | 18.75A | |
| Radar Sensor | YES | YES | YES | YES | |
| Product Features | Optical+ Remote Control |
Optical+ Remote Control |
Optical+ Remote Control |
Optical+ Remote Control |
|
| IP Rank | IP65 | IP65 | IP65 | IP65 | |
| Luminous Flux | 4500lm | 6500lm | 8500lm | 12000lm | |
| Camera Resolution | 1440P day and night full-color; 4M Pixel | ||||
| Camera Lens | Focal length: 4MM; 350 degree from horizontal; 90 degree from vertical | ||||
| Version | WiFi or4G | ||||
| Decoding | H.265 | ||||
| TF Card | 32G to 256G for optional | ||||
| Platform | APP or PC | ||||
| CCTV Working Mode |
24 hours working or Induction |
||||
| Certifications | CE, RoHS, FCC, CB | ||||
Without CCTV Camera
| Model | YHZ-SSO100 | YHZ-SSO200 | YHZ-SSO300 | YHZ-SSO400 | |
| Lamp Body Material |
Die-casting aluminium |
Die-casting aluminium |
Die-casting aluminium |
Die-casting aluminium |
|
| Lens Material | Teijin PC | Teijin PC | Teijin PC | Teijin PC | |
| Lamp Size | 932*365*160mm | 1122*365*160mm | 1342*365*160mm | 1672*365*160mm | |
| LED Chip |
45 PCS |
90 PCS |
135 PCS |
180 PCS |
|
| Battery | LiFePO4 60Ah |
LiFePO4 85Ah |
LiFePO4 105Ah |
LiFePO4 170Ah |
|
| Solar panel | 4V/60W (860*350mm) |
4 V/75W (1050*350mm) |
4 V/90W (1270*350mm) |
4 V/110W (1600*350mm) |
|
| CCT | 6500-7500K | 6500-7500K | 6500-7500K | 6500-7500K | |
| Charging Time | Effective sunshine 4-6H |
Effective sunshine 4-6H |
Effective sunshine 4-6H |
Effective sunshine 4-6H |
|
| Discharge Time | 3-5 rainy & cloudy days |
3-5 rainy & cloudy days |
3-5 rainy & cloudy days |
3-5 rainy & cloudy days |
|
| Discharge Current | 7.8A | 11A | 14A | 18.75A | |
| Radar Sensor | YES | YES | YES | YES | |
| Product Features | Optical+ Remote Control |
Optical+ Remote Control |
Optical+ Remote Control |
Optical+ Remote Control |
|
| IP Rank | IP65 | IP65 | IP65 | IP65 | |
| Luminous Flux | 4500lm | 6500lm | 8500lm | 12000lm | |
| Certifications | CE, RoHS, FCC, CB | ||||
Installation
Certifications

Factory Overview

Contact Us
