YHZ-CY Series LED Street Light With 2-In-1 Driver And Photocell
Light Efficacy： 160–190 lm/W
Power Supply Efficiency： Up to 94.5%
LED Light Source： 3030 SMD / 5050 SMD
IP Rating： IP66
IK Rating： IK08/IK10
Surge Protection： 6 kV / 10 kV (configuration to be confirmed)
Vibration Protection： 5G (test conditions and report to be confirmed)
Driver & Photocell： Integrated LED driver and photocell sensor
Control： NFC offline programming, timed dimming/on-off; Zigbee, Bluetooth and DALI-2 control options
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description

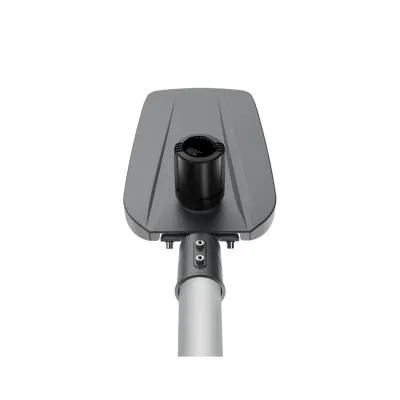

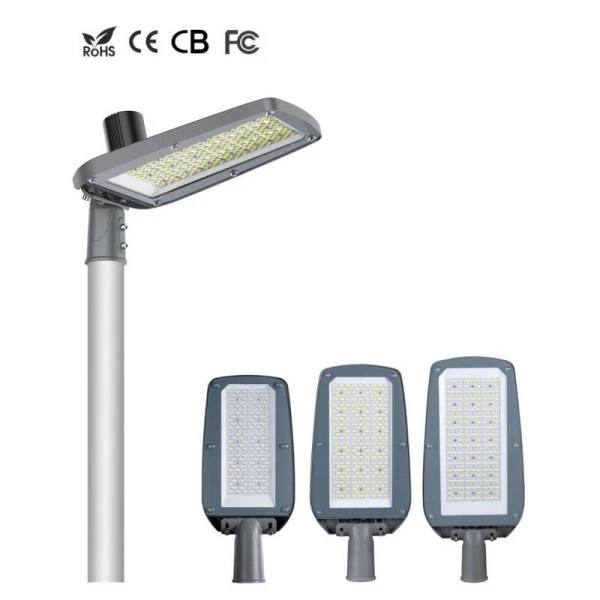

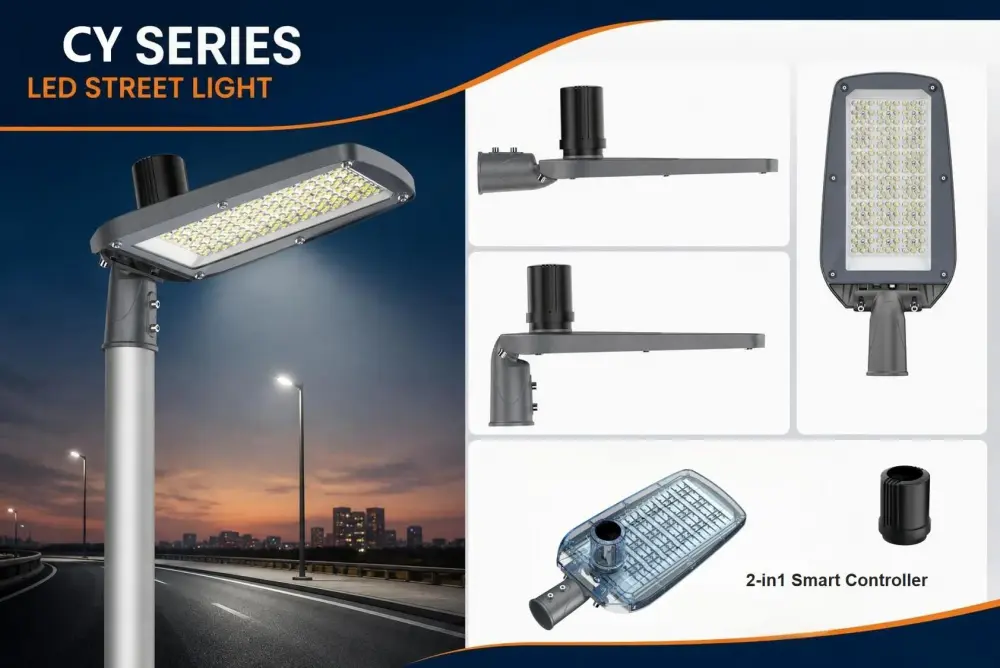

YHZ-CY Series LED Street Light with 2-in-1 Driver and Photocell
The YHZ-CY Series is available in power options from 80W to 240W and integrates the LED driver and photocell sensor into one unit. The integrated unit can be installed in as little as 10 seconds, helping simplify installation, setup, and maintenance. It supports NFC offline programming and scheduled dimming or switching. Zigbee, Bluetooth, and DALI-2 controls are available as options.
Share your road width, pole height, estimated quantity, and destination country. Contact us at sales@sxyhzm.com for model recommendations and project support.
Product Specifications
|
Parameter |
Specification |
|
Series No |
YHZ-CY Series |
|
Power |
80W, 100W, 120W, 150W, 180W, 200W, 240W |
|
Input Voltage |
100–277 VAC |
|
Light Efficacy |
160–190 lm/W |
|
Power Supply Efficiency |
Up to 94.5% |
|
LED Light Source |
3030 SMD / 5050 SMD |
|
IP Rating |
IP66 |
|
IK Rating |
IK08/IK10 |
|
Surge Protection |
6 kV / 10 kV (configuration to be confirmed) |
|
Vibration Protection |
5G (test conditions and report to be confirmed) |
|
Driver & Photocell |
Integrated LED driver and photocell sensor |
|
Control |
NFC offline programming, timed dimming/on-off; Zigbee, Bluetooth and DALI-2 control options |
|
Maintenance |
Buckle design for fast maintenance; "10-second maintenance" claim should be verified under defined service conditions |
|
Protection Functions |
Overvoltage, short-circuit, overtemperature and overcurrent protection |
|
Housing |
Aluminum housing; surface finish and material grade to be confirmed |
|
CCT |
3000K, 4000K, 5000K, 5700K |
|
CRI |
Ra>70 (Default) / Ra>80 |
|
Operating Temperature |
-40°C to + 50°C |
|
Beam Angle / Optical Distribution |
70*150 |
|
Mounting Option |
Side-entry mounting/Post-top mounting |
|
Warranty |
5 Years |
Features

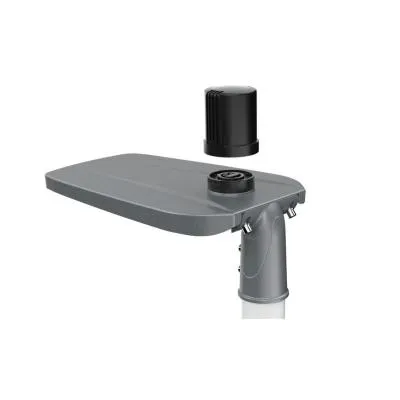

1. Integrated LED Driver and Photocell Sensor
- Reduces the need for a separate external photocell controller.
- Multi-point light sensing distinguishes natural light from artificial light.
- Supports scheduled dimming and on/off settings to meet project requirements.

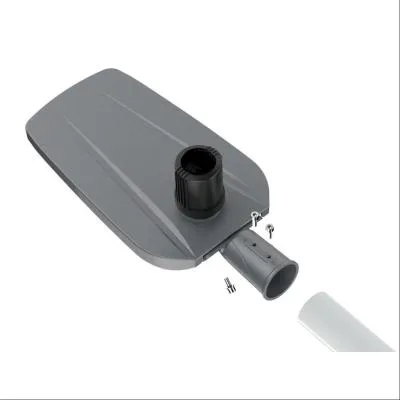

2.Designed for faster maintenance
The buckle-style design allows convenient access to the power supply for inspection or replacement.
Applications
The LED Street Light with Optional Photocell are suitable for grid-powered road and public-space lighting projects, including:
- Urban secondary roads and residential streets
- Industrial parks, factories, and logistics facilities
- Commercial areas, campuses, and roads around public facilities
- Parking lots and entrances
- Township roads and LED street-light retrofit projects
FAQs
01. What does the 2-in-1 LED driver and photocell sensor design mean?
02. Does the photocell sensor support automatic light-level detection?
Yes. The sensor detects light levels and supports lighting control based on the configured settings. Dimming and on/off schedules can be set according to project requirements.
03. Does the unit support NFC programming?
Yes. Compatible configurations support NFC offline programming. Available settings depend on the selected driver and control configuration.
04. Which control options are available?
05. What is the MOQ?
06. How quickly can the integrated unit be installed or replaced?
The integrated design is intended to simplify installation and maintenance. Usually 10s is available.
case Studies around the world
Batteries

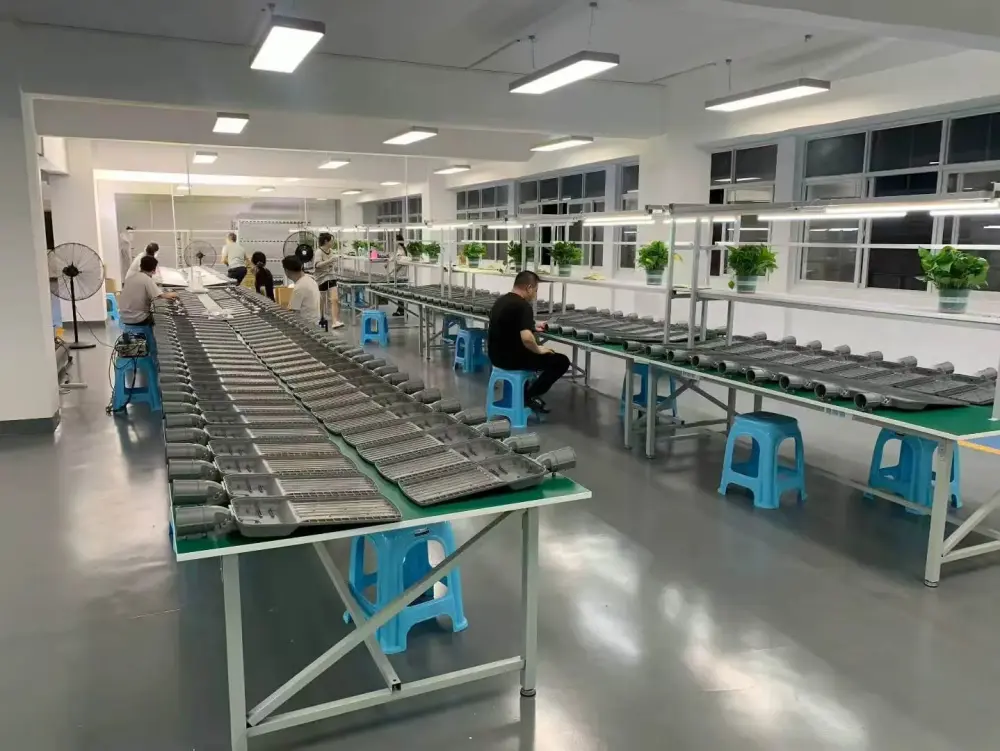

Factory overview
The following photos offer a closer look at our manufacturing facilities, equipment, production processes, and capabilities. You can also see our quality-control procedures and testing equipment, along with project photos and case studies from markets around the world.
Certifications
Contact us
For cost of this YHZ-CY Series LED Street Light with 2-in-1 Driver and Photocell, Please：
📩 Send us your inquiry and receive a professional response within 24 hours.
Hot Tags: yhz-cy series led street light with 2-in-1 driver and photocell, China yhz-cy series led street light with 2-in-1 driver and photocell manufacturers, suppliers, factory, 200W LED street lights design, cobra head street light design, High quality LED street lighting, led street lantern design, led street light heads design, modern street lights manufacturer
